The IPE 140 Steel Beam Cross-section Free DWG File is designed to meet the Euronorm 19-57; DIN 1025-5 standards. This model features a depth of 140 mm, a width of 73 mm and a web thickness of 4.7 mm.
The flange thickness is 6.9 mm and the inner depth between flanges is 126.2 mm. This product also has a root fillet radius of 7 mm and a distance of 14 mm. The sectional area of the IPE 140 is 16.43 cm2. This product is perfect for those who need a reliable and durable cross-section for their project. It is easy to install and will provide a strong and reliable structure.
IPE 140 AutoCAD Block
IPE 140 Free CAD Block File Downloads

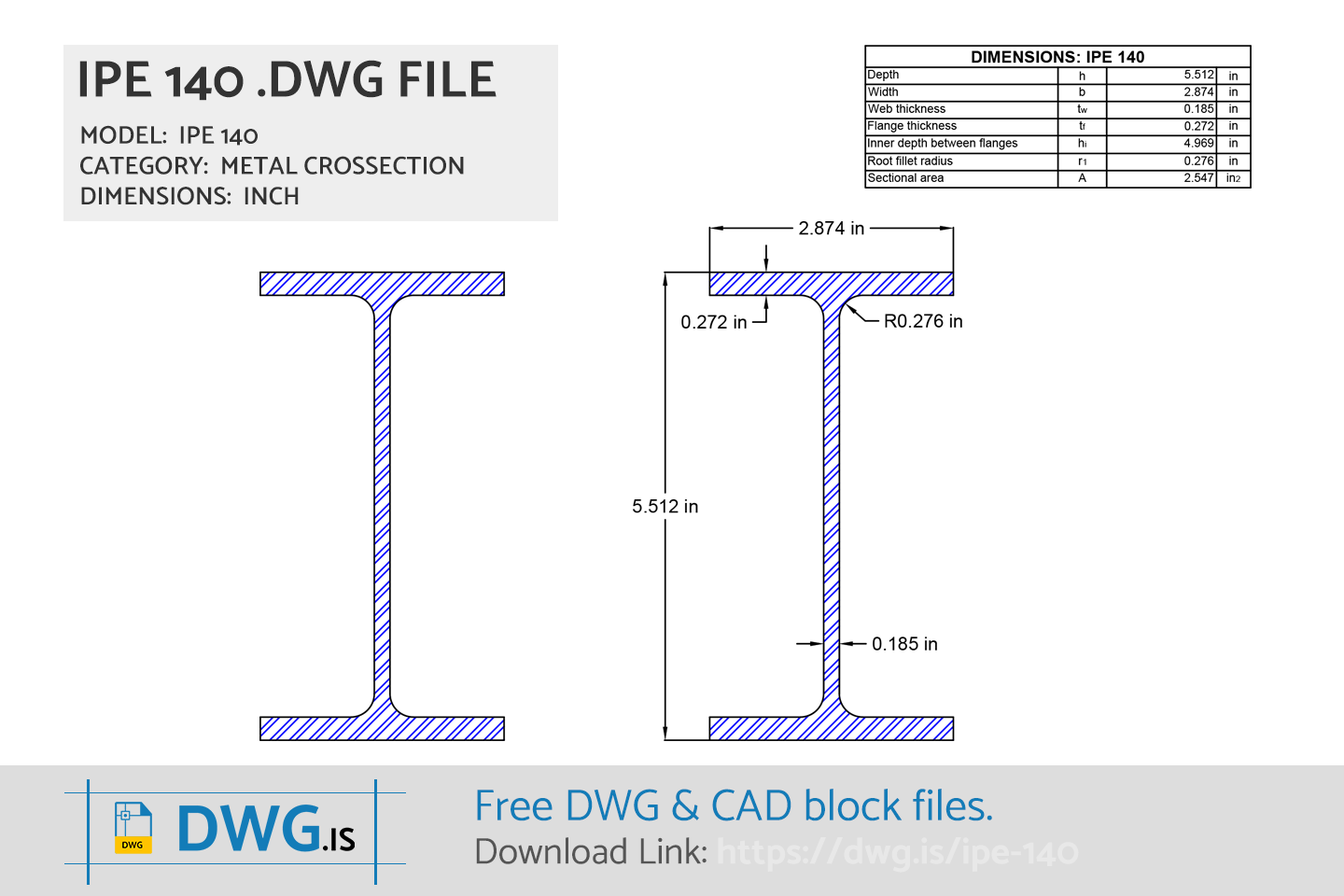

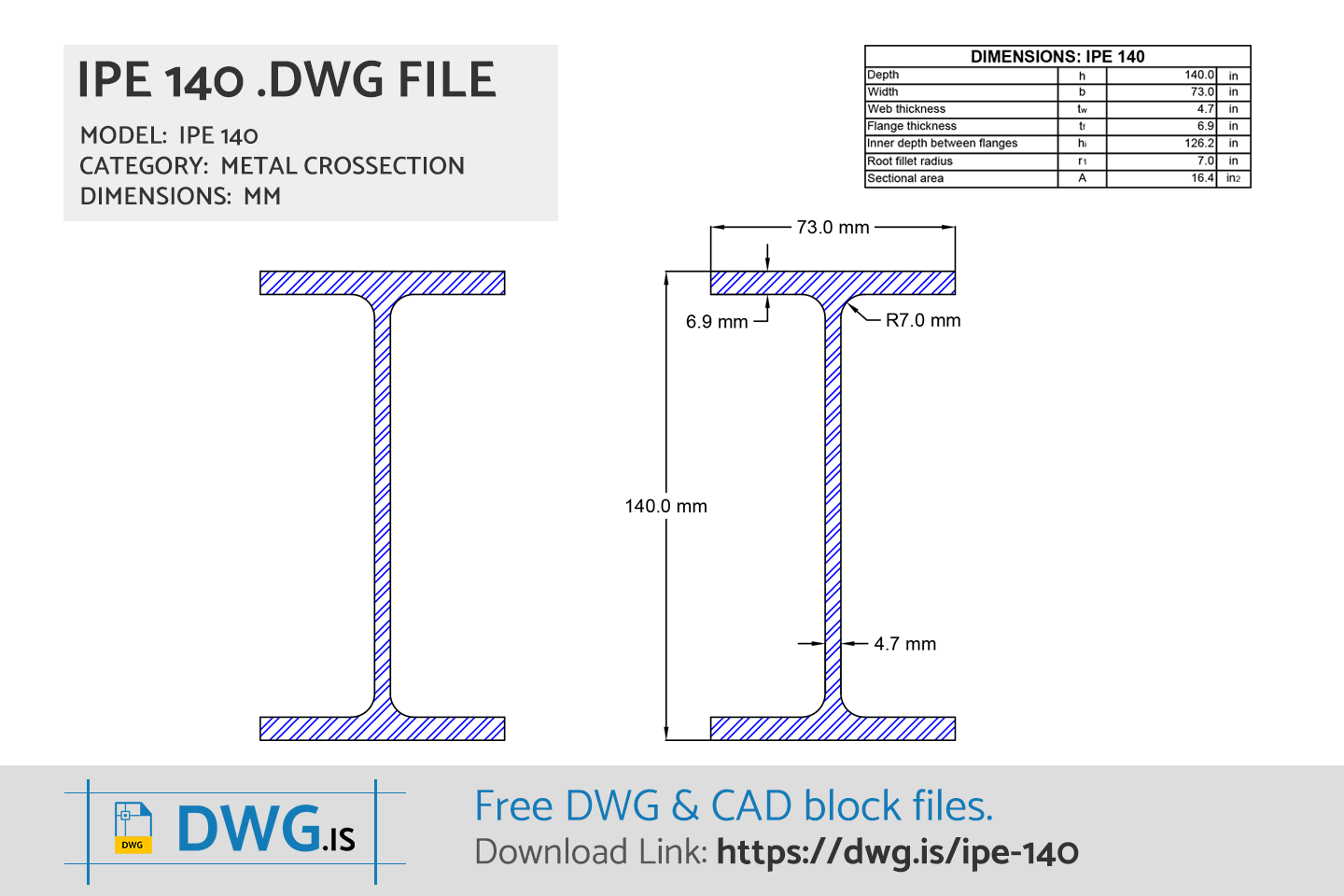

IPE 140 DWG File DownloadDWG DOWNLOAD ⇓
IPE 140 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 140 Dimensions
| IPE 140 Size | |
|---|---|
| Depth | 140.0 mm |
| Width | 73.0 mm |
| Web Thickness | 4.7 mm |
| Flange Thickness | 6.9 mm |
| Inner depth between flanges | 126.2 mm |
| Root Fillet Radius | 7.0 mm |
| Distance | 14.0 mm |
| Sectional Area | 16.43 cm2 |
IPE 140 FAQ
-
What are IPE 140 size?
IPE 140 has dimensions: Depth 140.0 mm, Width 73.0 mm, Web Thickness 4.7 mm, Flange Thickness 6.9 mm, Inner depth between flanges 126.2 mm, Root Fillet Radius 7.0 mm, Distance 14.0 mm, Sectional Area 16.43 cm2.
