This UPN 50 Tapered Flange Channel Cross-section Free DWG File is a great way to add this dwg component design to your project. The channel section measures 50 mm in depth, 38 mm in width, 5 mm in web thickness, 7 mm in flange thickness, 7 mm in root fillet radius, 3.5 mm in toe radius and 19 mm in distance. Additionally, the cross-section of this channel provides a total sectional area of 7.1 cm2.
This UPN 50 Tapered Flange Channel Cross-section Free DWG File is perfect for a variety of structural applications, and is made from durable, high quality materials. With its sleek, contemporary styling and reliable construction, this channel will be sure to add a unique, modern touch to your project.

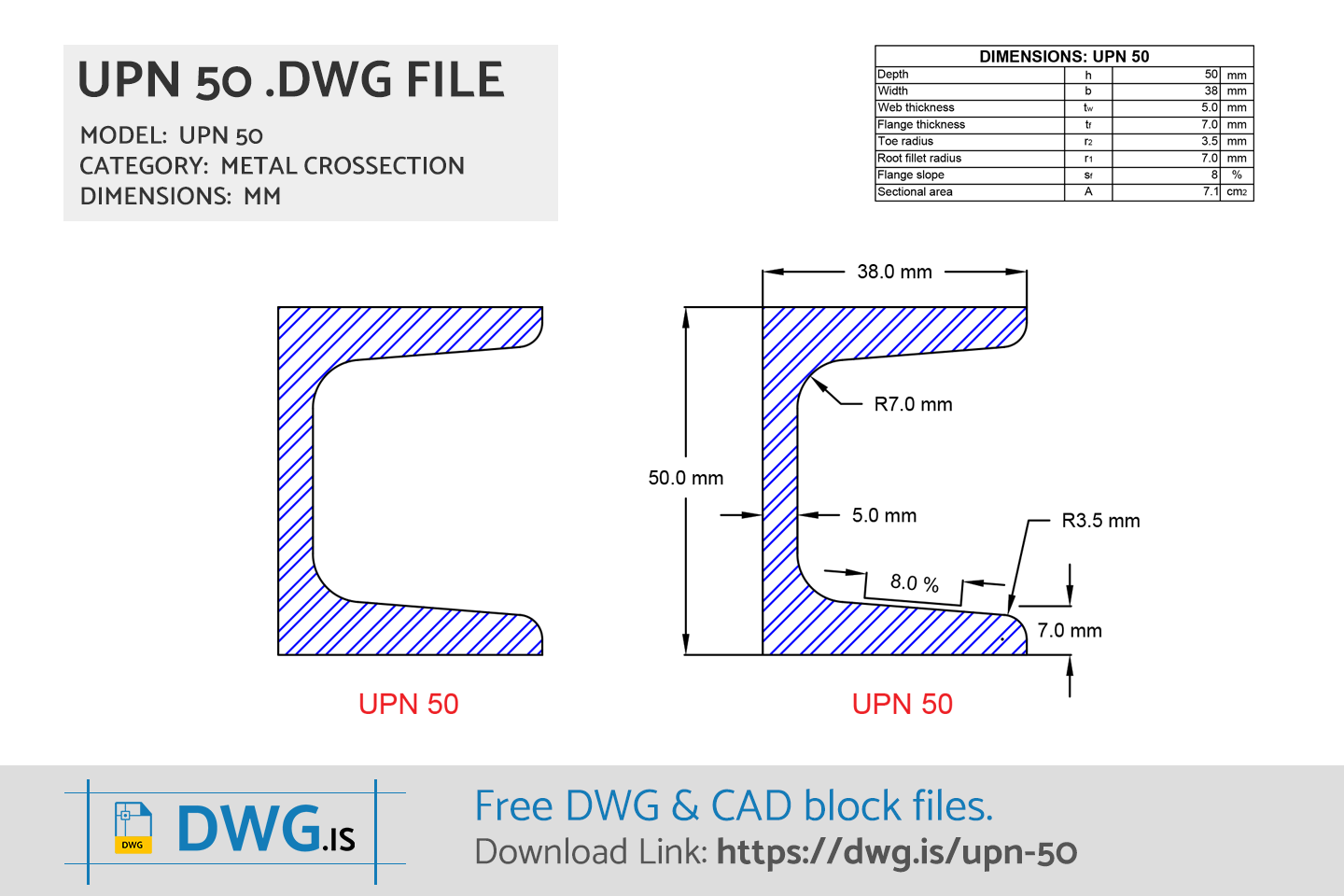

UPN 50 AutoCAD Block

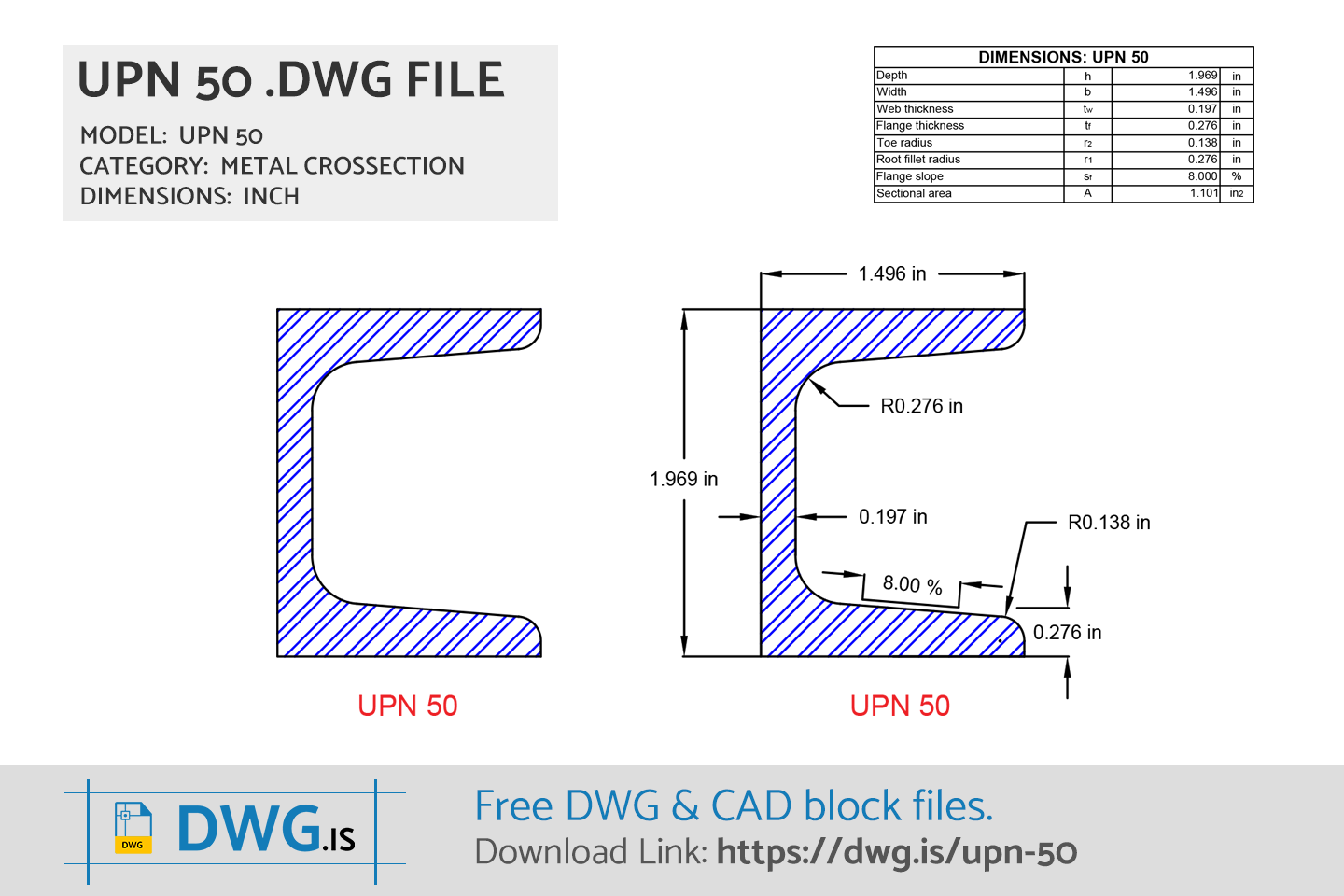

UPN 50 Free CAD Block File Downloads
UPN 50 DWG File DownloadDWG DOWNLOAD ⇓
UPN 50 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 50 Dimensions
| UPN 50 Size | |
|---|---|
| Depth | 50.0 mm |
| Width | 38.0 mm |
| Web Thickness | 5.0 mm |
| Flange Thickness | 7.0 mm |
| Root Fillet Radius | 7.0 mm |
| Toe Radius | 3.5 mm |
| Distance | 19.0 mm |
| Sectional Area | 7.1 cm2 |
UPN 50 FAQ
-
What are UPN 50 size?
UPN 50 has dimensions: Depth 50.0 mm, Width 38.0 mm, Web Thickness 5.0 mm, Flange Thickness 7.0 mm, Root Fillet Radius 7.0 mm, Toe Radius 3.5 mm, Distance 19.0 mm, Sectional Area 7.1 cm2.
