IPE 500 Steel Beam Cross-section Free DWG File is a highly durable and reliable steel beam with a cross-sectional profile. It is compliant with the standards of Euronorm 19-57, DIN 1025-5 and has a depth of 500mm, width of 200mm and a web thickness of 10.2mm.
The flange thickness is 16mm and the inner depth between flanges is 468mm. There is a root fillet radius of 21mm and a distance of 37mm. Its total sectional area adds up to 115.5 cm2. This steel beam is ideal for both residential and commercial applications, as it is highly resistant to corrosion and temperature changes. It is also easy to install and maintain, making it a great choice for any project.

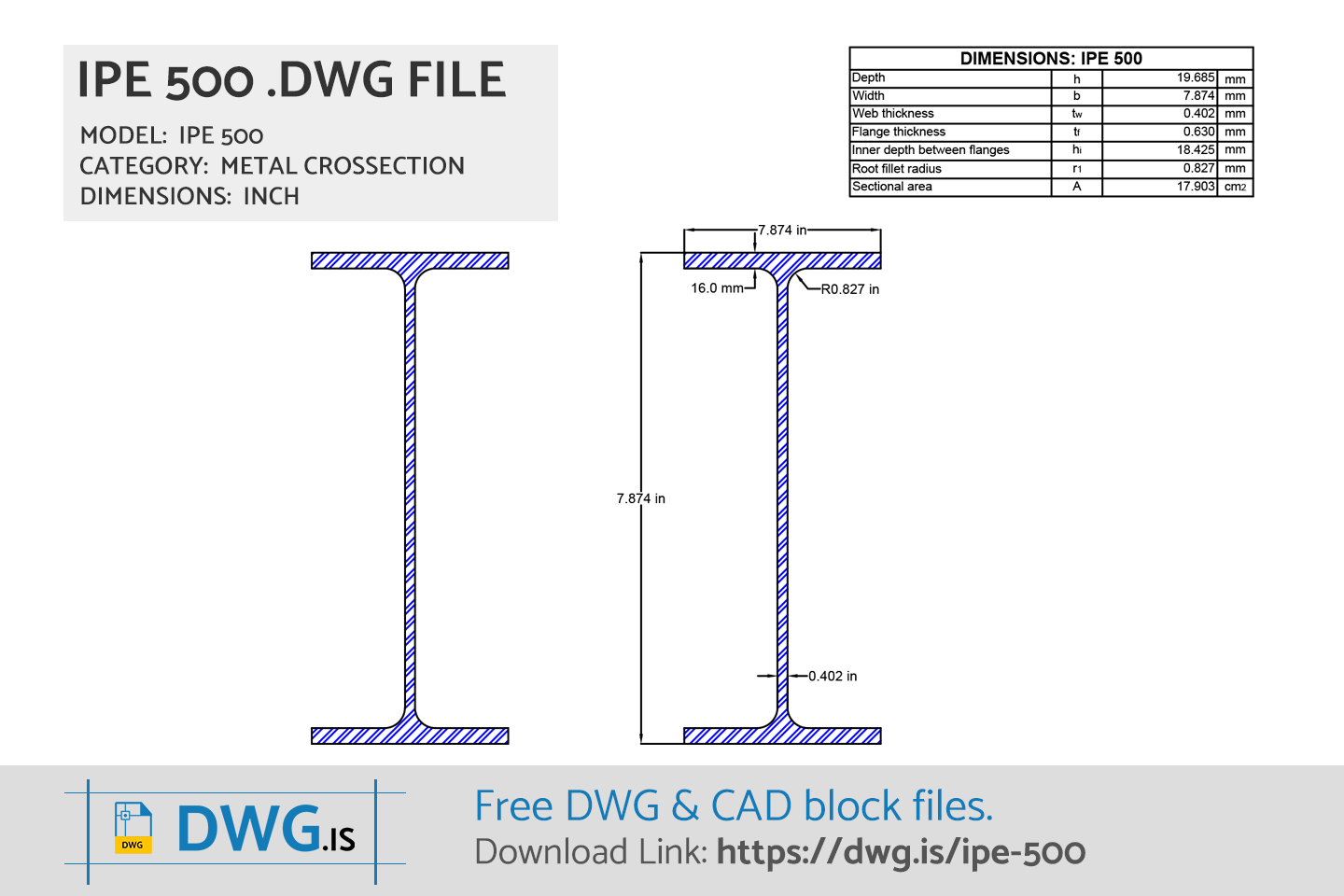

IPE 500 AutoCAD Block
IPE 500 Free CAD Block File Downloads
IPE 500 DWG File DownloadDWG DOWNLOAD ⇓

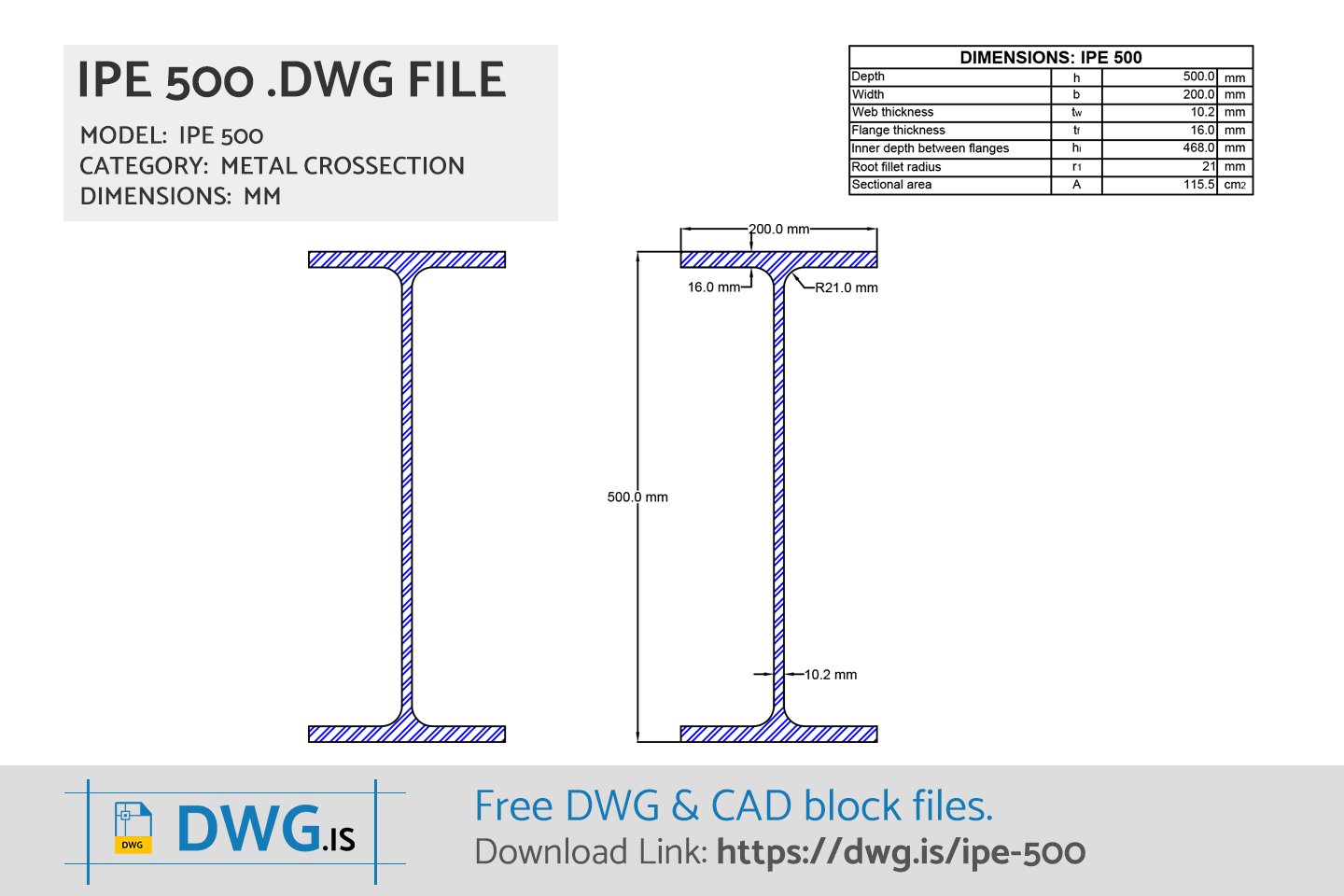

IPE 500 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 500 Dimensions
| IPE 500 Size | |
|---|---|
| Depth | 500.0 mm |
| Width | 200.0 mm |
| Web Thickness | 10.2 mm |
| Flange Thickness | 16.0 mm |
| Inner depth between flanges | 468.0 mm |
| Root Fillet Radius | 21.0 mm |
| Distance | 37.0 mm |
| Sectional Area | 115.5 cm2 |
IPE 500 FAQ
-
What are IPE 500 size?
IPE 500 has dimensions: Depth 500.0 mm, Width 200.0 mm, Web Thickness 10.2 mm, Flange Thickness 16.0 mm, Inner depth between flanges 468.0 mm, Root Fillet Radius 21.0 mm, Distance 37.0 mm, Sectional Area 115.5 cm2.
