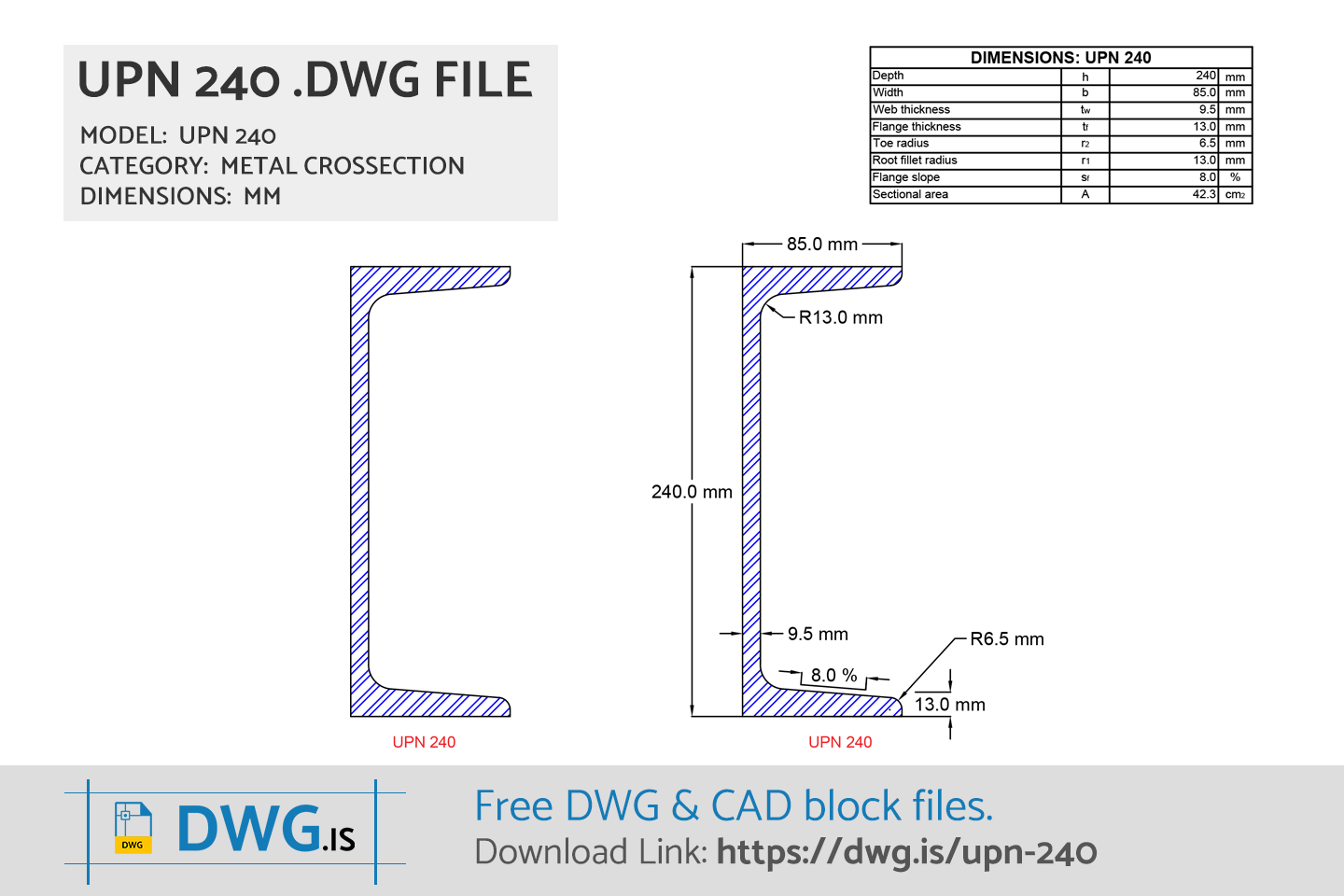

UPN 240 Flange Channel Cross-section Free DWG File includes dimensions of 240 mm in depth, 85 mm in width, 9.5 mm in web thickness, 13 mm in flange thickness, 13 mm in root fillet radius, 6.5 mm in toe radius, and 42.5 mm in distance. It also includes the sectional area of 42.3 cm2.
UPN 240 DWG file is perfect for any engineering or architectural project where precise measurements are needed. It is easy to use and can be customized to suit any project's needs. With this DWG file, it is easy to visualize the exact measurements of the UPN 240 Tapered Flange Channel Cross-section. This file is sure to save time and money, and make any project easier to complete.
UPN 240 AutoCAD Block
UPN 240 Free CAD Block File Downloads
UPN 240 DWG File DownloadDWG DOWNLOAD ⇓
UPN 240 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 240 Dimensions
| UPN 240 Size | |
|---|---|
| Depth | 240.0 mm |
| Width | 85.0 mm |
| Web Thickness | 9.5 mm |
| Flange Thickness | 13.0 mm |
| Root Fillet Radius | 13.0 mm |
| Toe Radius | 6.5 mm |
| Distance | 42.5 mm |
| Sectional Area | 42.3 cm2 |
UPN 240 FAQ
-
What are UPN 240 size?
UPN 240 has dimensions: Depth 240.0 mm, Width 85.0 mm, Web Thickness 9.5 mm, Flange Thickness 13.0 mm, Root Fillet Radius 13.0 mm, Toe Radius 6.5 mm, Distance 42.5 mm, Sectional Area 42.3 cm2.
