HEB 300 AutoCAD Block
HEB 300 Free CAD Block File Downloads
HEB 300 DWG File DownloadDWG DOWNLOAD ⇓

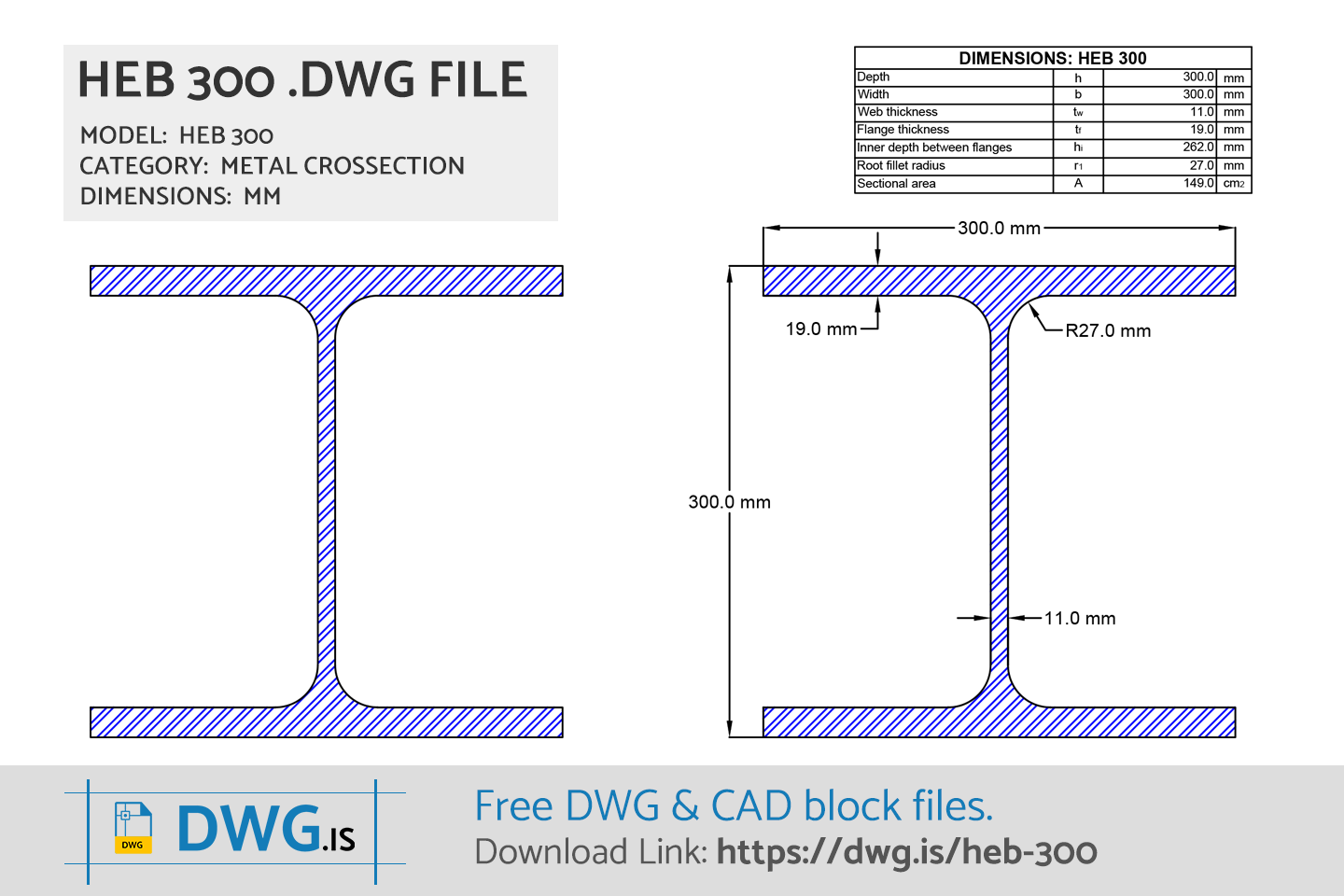

HEB 300 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 300 Dimensions
| HEB 300 Size | |
|---|---|
| Depth | 300.0 mm |
| Width | 300.0 mm |
| Web Thickness | 11.0 mm |
| Flange Thickness | 19.0 mm |
| Flange Inner Depth | 262.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 208.0 mm |
| Sectional Area | 149.1 cm2 |
HEB 300 FAQ
-
What are HEB 300 size?
HEB 300 has dimensions: Depth 300.0 mm, Width 300.0 mm, Web Thickness 11.0 mm, Flange Thickness 19.0 mm, Flange Inner Depth 262.0 mm, Root Fillet Radius 27.0 mm, Distance 208.0 mm, Sectional Area 149.1 cm2.
