This UPN 220 Tapered Flange Channel Cross-section Free DWG File has a depth of 220mm, width of 80mm, web thickness of 9mm, flange thickness of 12.5mm, root fillet radius of 12.5mm, toe radius of 6.5mm, and distance of 40mm. Its sectional area is 37.4 cm2.
This UPN 220 Tapered Flange Channel Cross-section Free DWG File is perfect for any project requiring a high-quality, high-strength, and long-lasting tapered flange channel cross-section. With its robust design and easy installation, this product is sure to meet all of your needs. Its excellent quality, durability, and affordability make it the perfect choice for any application.
UPN 220 AutoCAD Block
UPN 220 Free CAD Block File Downloads
UPN 220 DWG File DownloadDWG DOWNLOAD ⇓

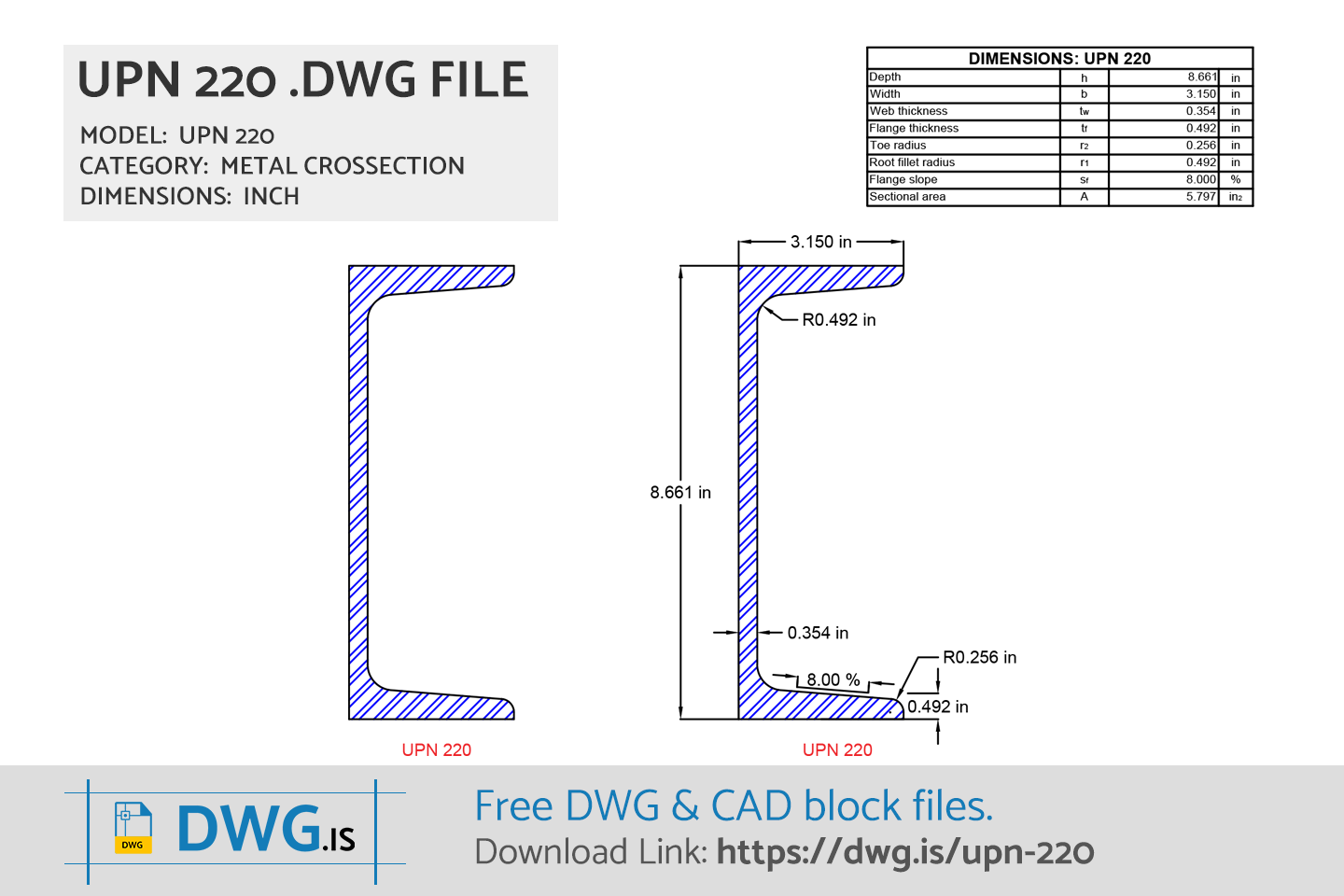

UPN 220 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓

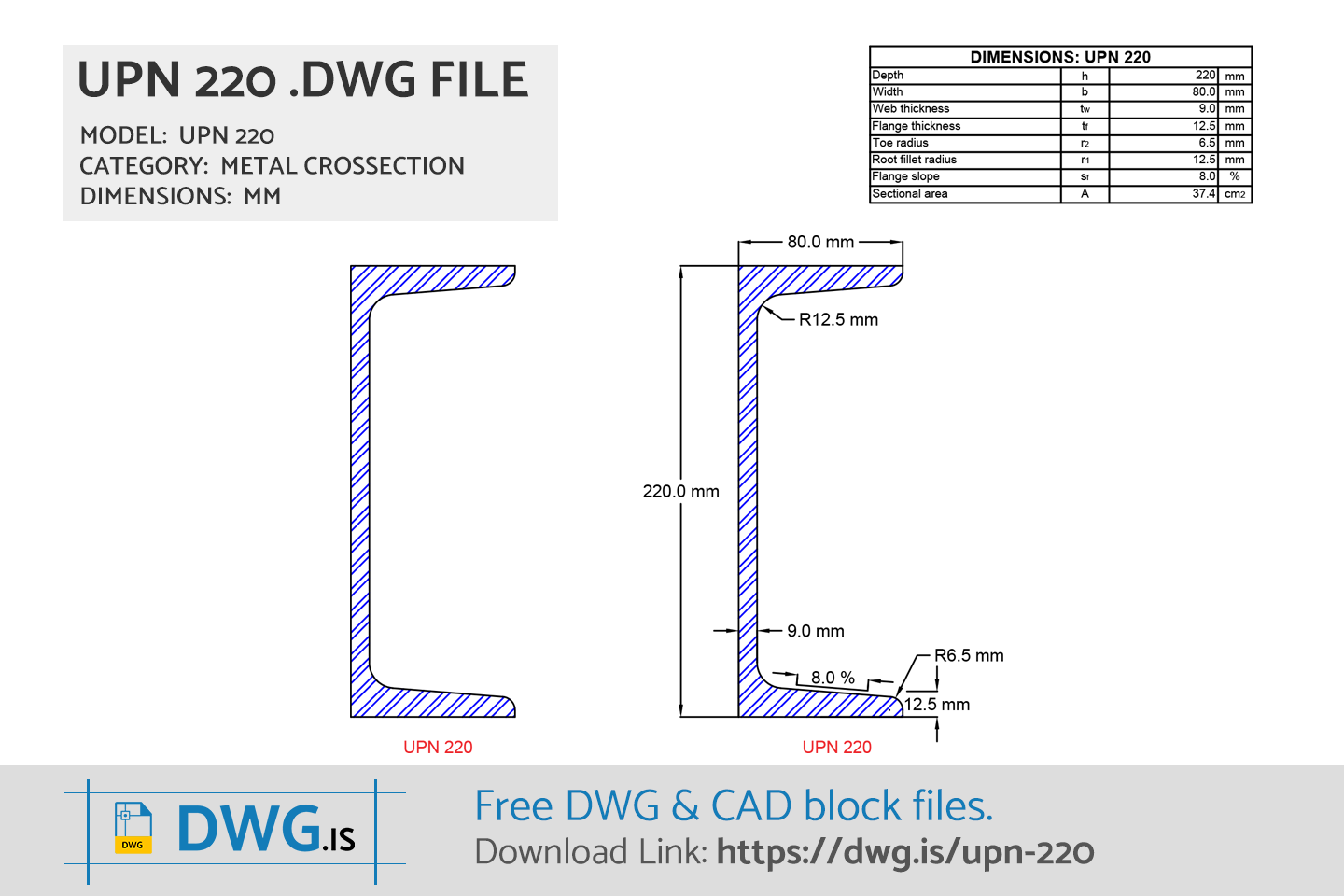

WITH DIMENSION (mm)
UPN 220 Dimensions
| UPN 220 Size | |
|---|---|
| Depth | 220.0 mm |
| Width | 80.0 mm |
| Web Thickness | 9.0 mm |
| Flange Thickness | 12.5 mm |
| Root Fillet Radius | 12.5 mm |
| Toe Radius | 6.5 mm |
| Distance | 40.0 mm |
| Sectional Area | 37.4 cm2 |
UPN 220 FAQ
-
What are UPN 220 size?
UPN 220 has dimensions: Depth 220.0 mm, Width 80.0 mm, Web Thickness 9.0 mm, Flange Thickness 12.5 mm, Root Fillet Radius 12.5 mm, Toe Radius 6.5 mm, Distance 40.0 mm, Sectional Area 37.4 cm2.
