HEA 140 DWG file for HEA 140 European Standard Wide Flange H Beams. The dimensions and specifications of the beams are in accordance with the former standard Euronorm 53-62. The beams have a depth of 133 mm, width of 140 mm, web thickness of 5.5 mm, flange thickness of 8.5 mm, flange inner depth of 116 mm, root fillet radius of 12 mm, and a sectional area of 31.4 cm2. The distance between flanges is 21 mm. These beams are made of high-grade steel, with a corrosion-resistant coating, and can handle heavy loads with ease. They are perfect for a wide range of construction projects, from residential homes to large bridges and buildings. These HEA 140 beams are an economical and reliable option for achieving structural integrity.
HEA 140 AutoCAD Block

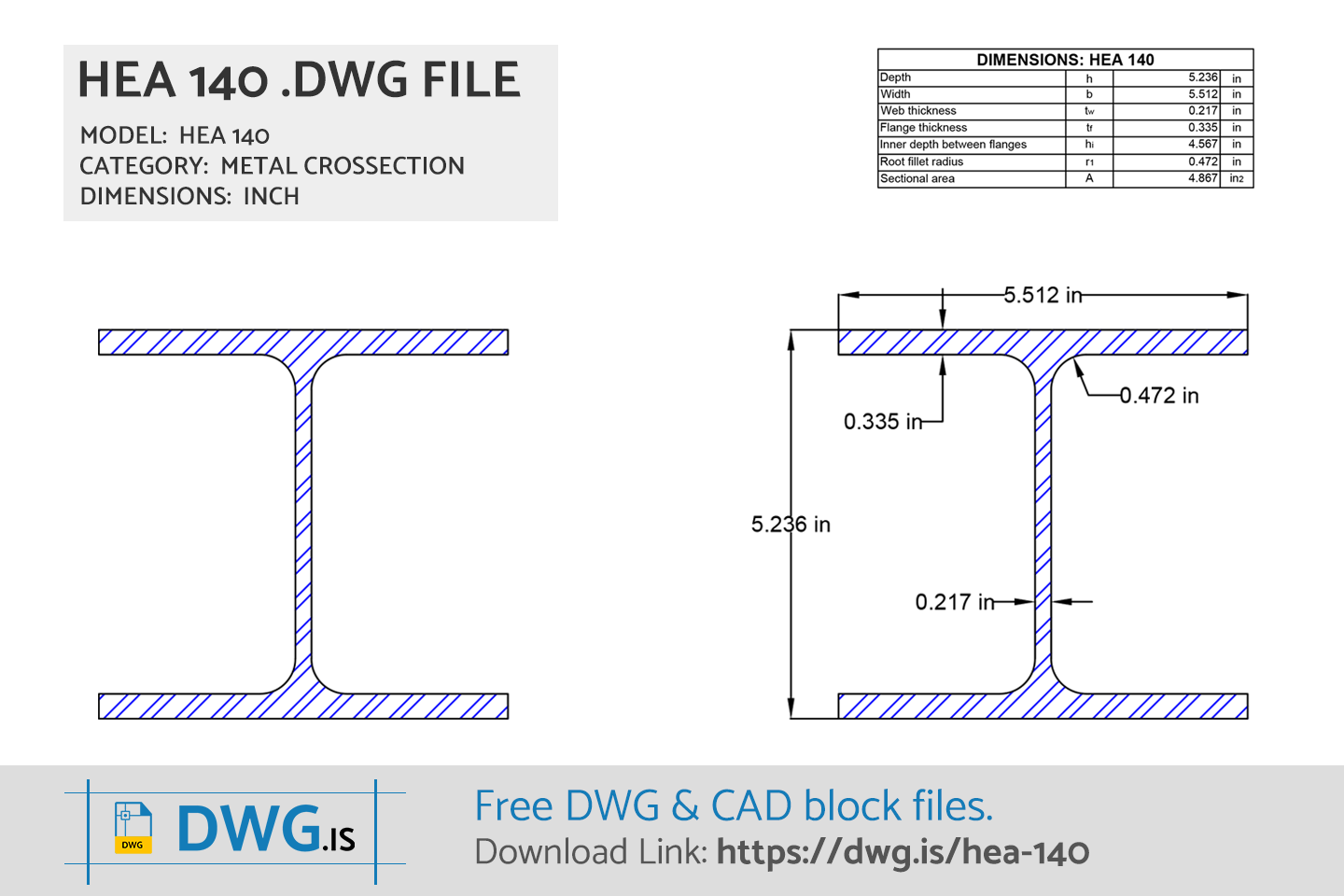

HEA 140 Free CAD Block File Downloads
HEA 140 DWG File DownloadDWG DOWNLOAD ⇓

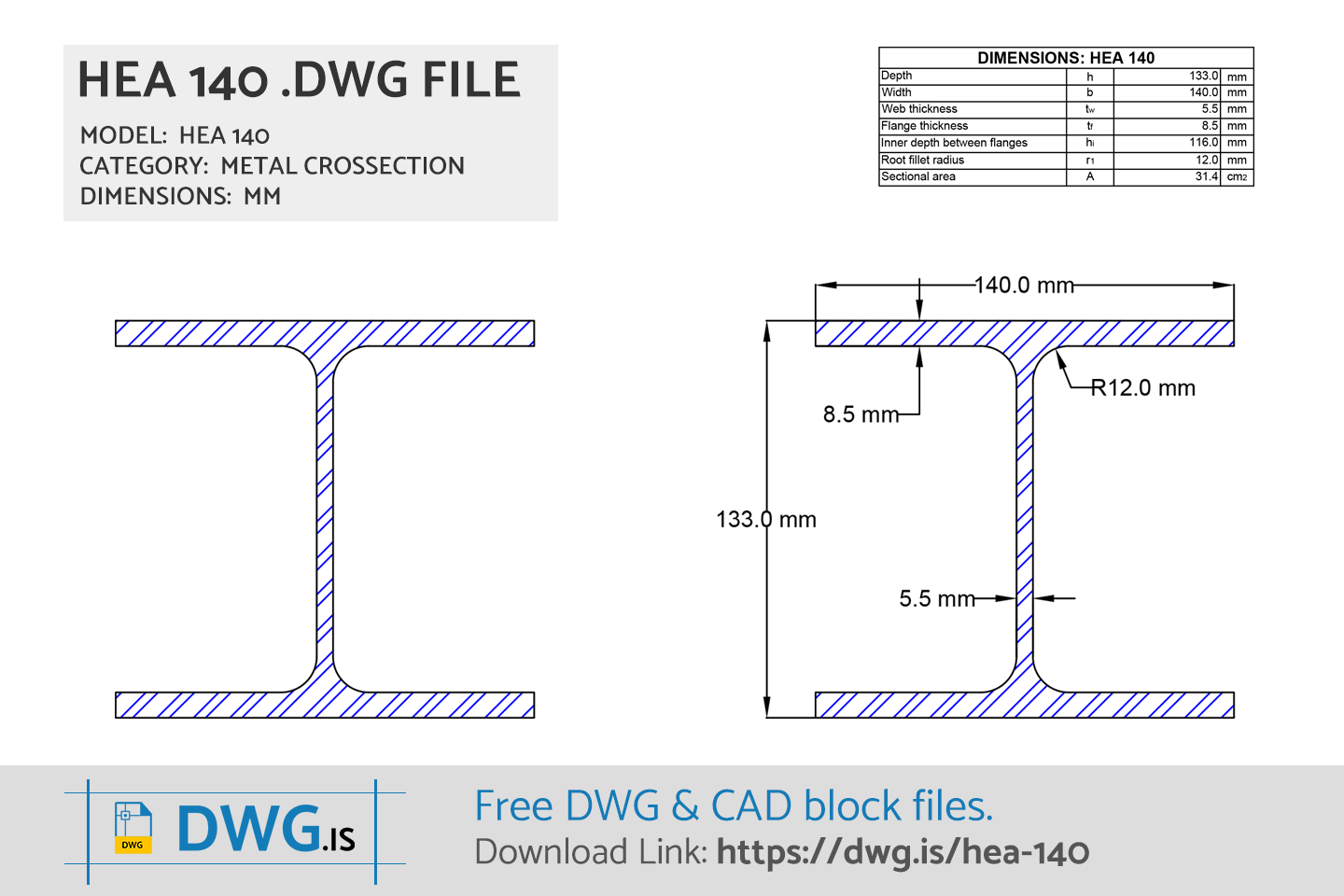

HEA 140 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 140 Dimensions
| HEA 140 Size | |
|---|---|
| Depth | 133.0 mm |
| Width | 140.0 mm |
| Web Thickness | 5.5 mm |
| Flange Thickness | 8.5 mm |
| Flange Inner Depth | 116.0 mm |
| Root Fillet Radius | 12.0 mm |
| Distance | 21.0 mm |
| Sectional Area | 31.4 cm2 |
HEA 140 FAQ
-
What are HEA 140 size?
HEA 140 has dimensions: Depth 133.0 mm, Width 140.0 mm, Web Thickness 5.5 mm, Flange Thickness 8.5 mm, Flange Inner Depth 116.0 mm, Root Fillet Radius 12.0 mm, Distance 21.0 mm, Sectional Area 31.4 cm2.
