HEB 140 AutoCAD Block
HEB 140 Free CAD Block File Downloads

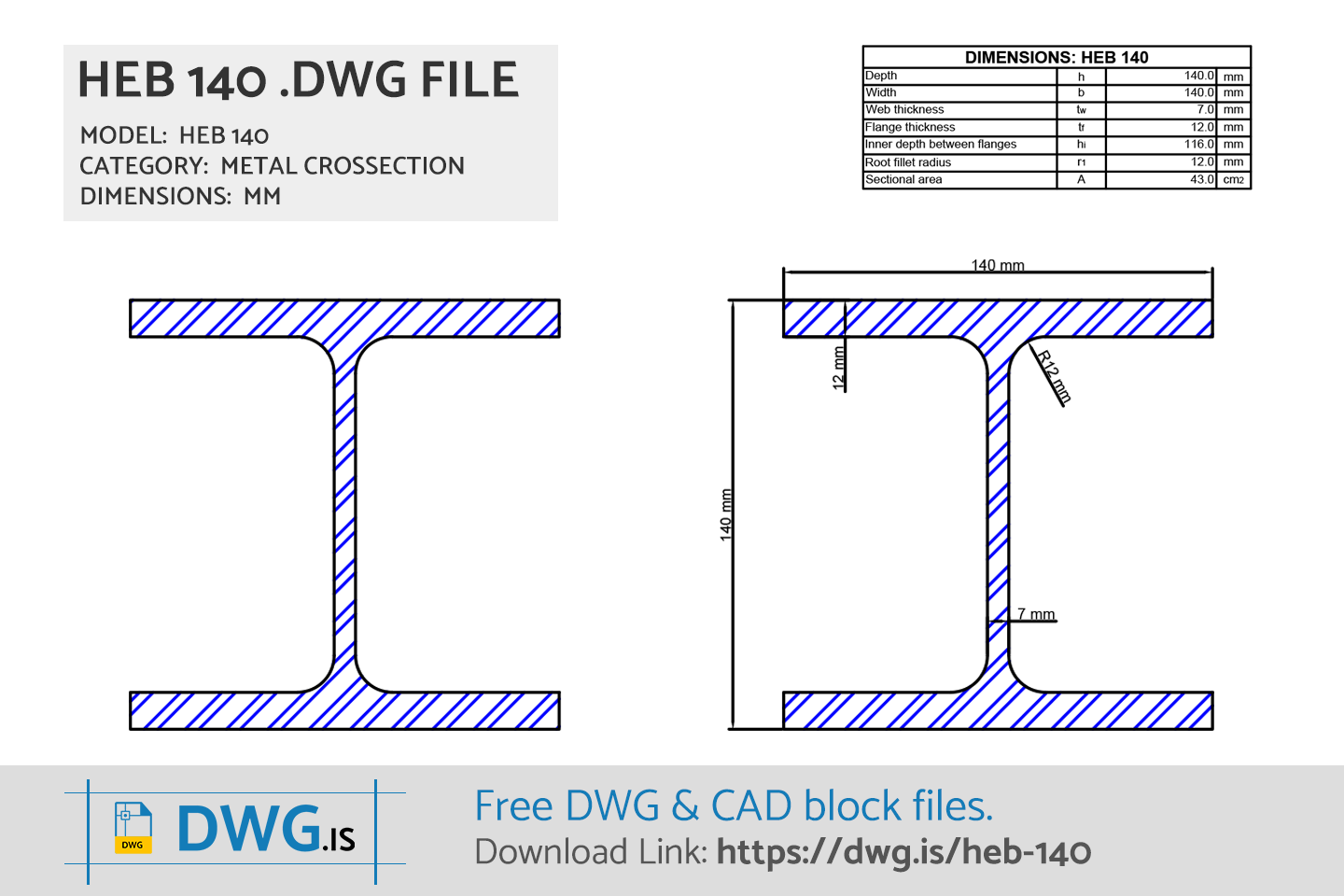

HEB 140 DWG File DownloadDWG DOWNLOAD ⇓
HEB 140 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 140 Dimensions
| HEB 140 Size | |
|---|---|
| Depth | 140.0 mm |
| Width | 140.0 mm |
| Web Thickness | 7.0 mm |
| Flange Thickness | 12.0 mm |
| Flange Inner Depth | 116.0 mm |
| Root Fillet Radius | 12.0 mm |
| Distance | 92.0 mm |
| Sectional Area | 43.0 cm2 |
HEB 140 FAQ
-
What are HEB 140 size?
HEB 140 has dimensions: Depth 140.0 mm, Width 140.0 mm, Web Thickness 7.0 mm, Flange Thickness 12.0 mm, Flange Inner Depth 116.0 mm, Root Fillet Radius 12.0 mm, Distance 92.0 mm, Sectional Area 43.0 cm2.
