HEB 800 AutoCAD Block
HEB 800 Free CAD Block File Downloads
HEB 800 DWG File DownloadDWG DOWNLOAD ⇓

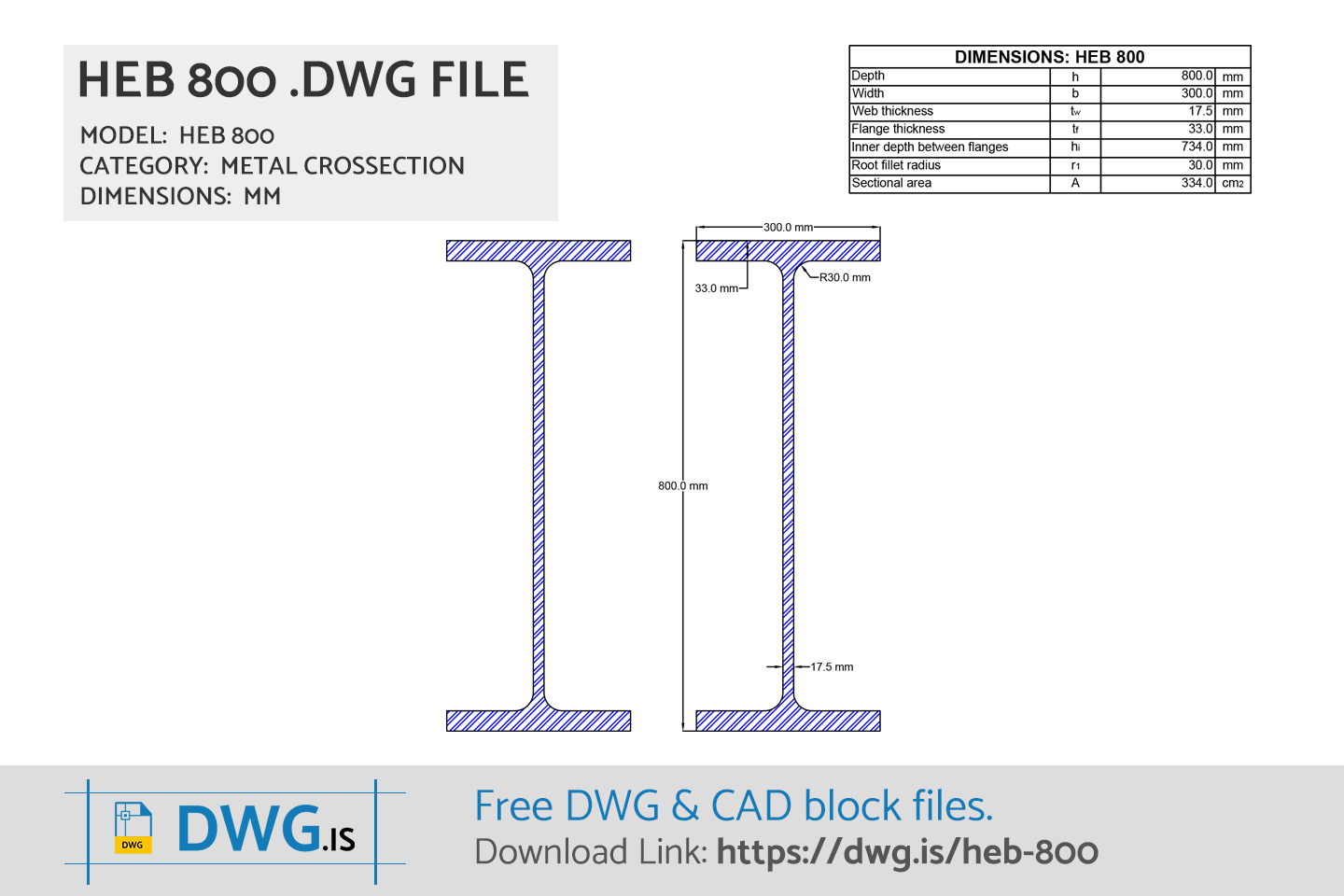

HEB 800 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 800 Dimensions
| HEB 800 Size | |
|---|---|
| Depth | 800.0 mm |
| Width | 300.0 mm |
| Web Thickness | 17.5 mm |
| Flange Thickness | 33.0 mm |
| Flange Inner Depth | 734.0 mm |
| Root Fillet Radius | 30.0 mm |
| Distance | 674.0 mm |
| Sectional Area | 334.2 cm2 |
HEB 800 FAQ
-
What are HEB 800 size?
HEB 800 has dimensions: Depth 800.0 mm, Width 300.0 mm, Web Thickness 17.5 mm, Flange Thickness 33.0 mm, Flange Inner Depth 734.0 mm, Root Fillet Radius 30.0 mm, Distance 674.0 mm, Sectional Area 334.2 cm2.
