HEB 360 AutoCAD Block
HEB 360 Free CAD Block File Downloads
HEB 360 DWG File DownloadDWG DOWNLOAD ⇓

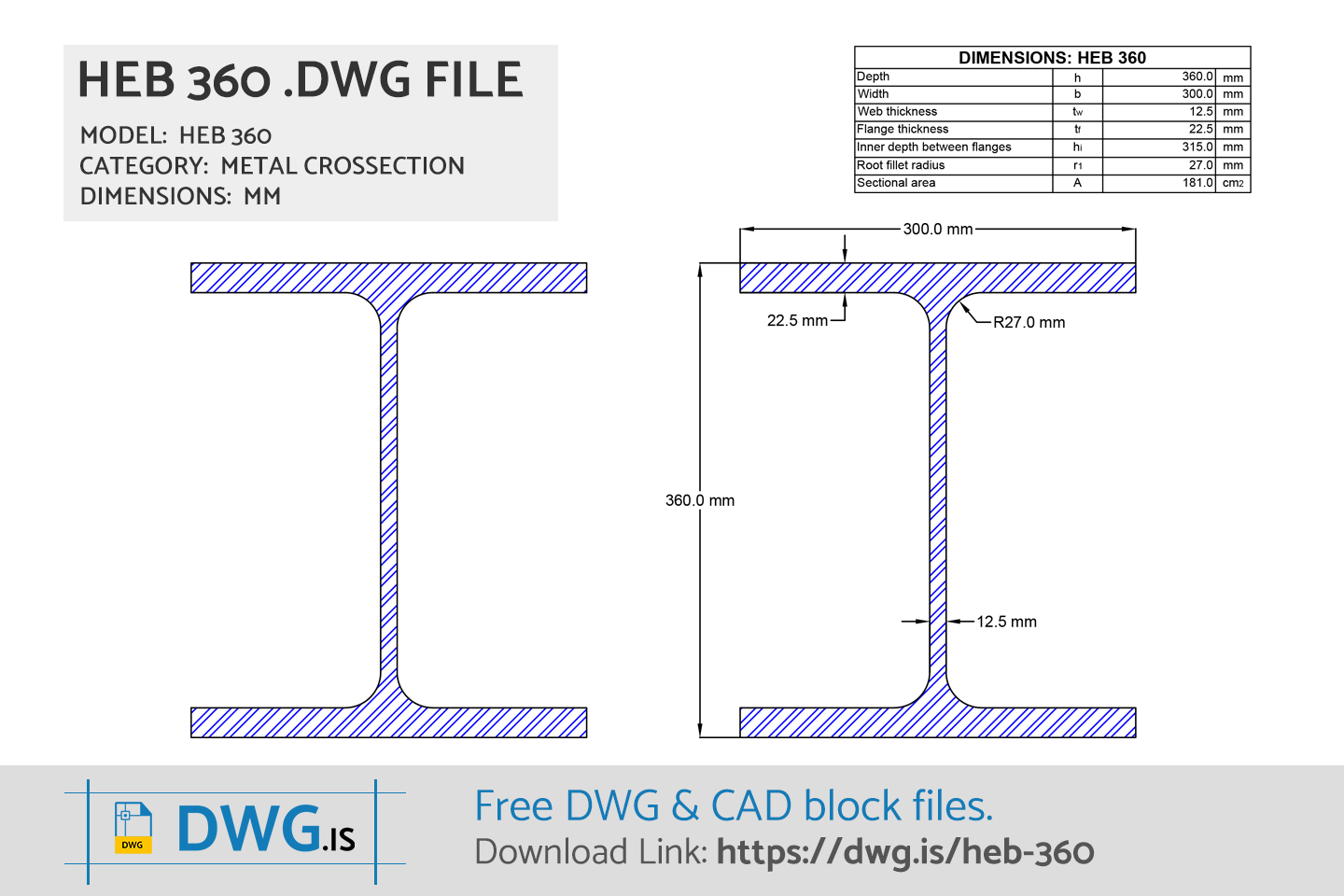

HEB 360 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 360 Dimensions
| HEB 360 Size | |
|---|---|
| Depth | 360.0 mm |
| Width | 300.0 mm |
| Web Thickness | 12.5 mm |
| Flange Thickness | 22.5 mm |
| Flange Inner Depth | 315.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 261.0 mm |
| Sectional Area | 180.6 cm2 |
HEB 360 FAQ
-
What are HEB 360 size?
HEB 360 has dimensions: Depth 360.0 mm, Width 300.0 mm, Web Thickness 12.5 mm, Flange Thickness 22.5 mm, Flange Inner Depth 315.0 mm, Root Fillet Radius 27.0 mm, Distance 261.0 mm, Sectional Area 180.6 cm2.
