IPE 80 steel beam cross-section free DWG file is an ideal solution for a variety of engineering projects. It is designed and constructed to meet or exceed the rigorous European standards of Euronorm 19-57 and DIN 1025-5.
IPE 80 DWG File has a depth of 80 mm, width of 46 mm, web thickness of 3.8 mm, and flange thickness of 5.2 mm. It also features an inner depth between flanges of 69.9 mm, root fillet radius of 5 mm, distance of 10 mm, and sectional area of 7.64 cm2. This model is a great choice for use in the design and construction of various structures, with the flexibility to adapt to different needs.

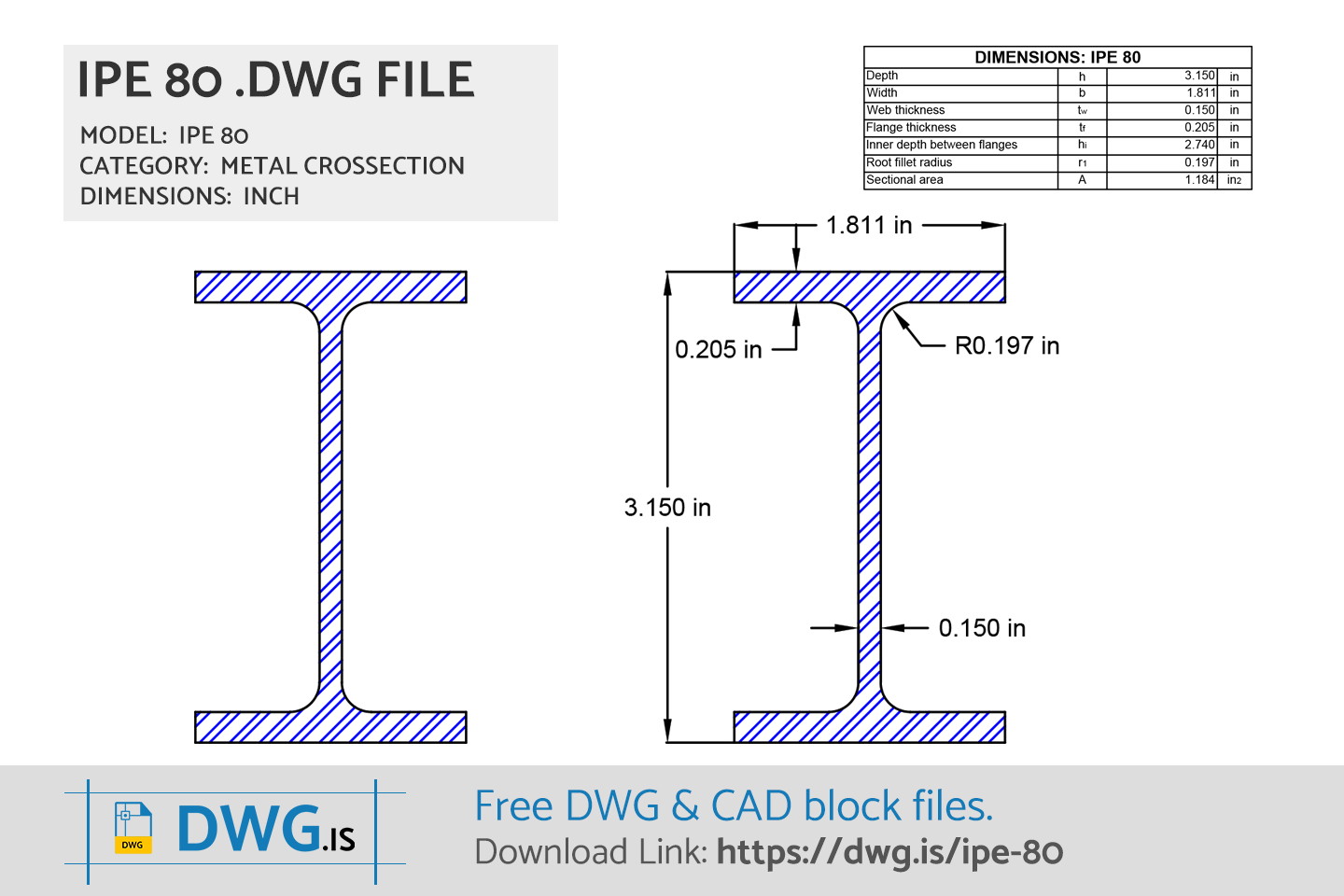

IPE 80 AutoCAD Block
IPE 80 Free CAD Block File Downloads

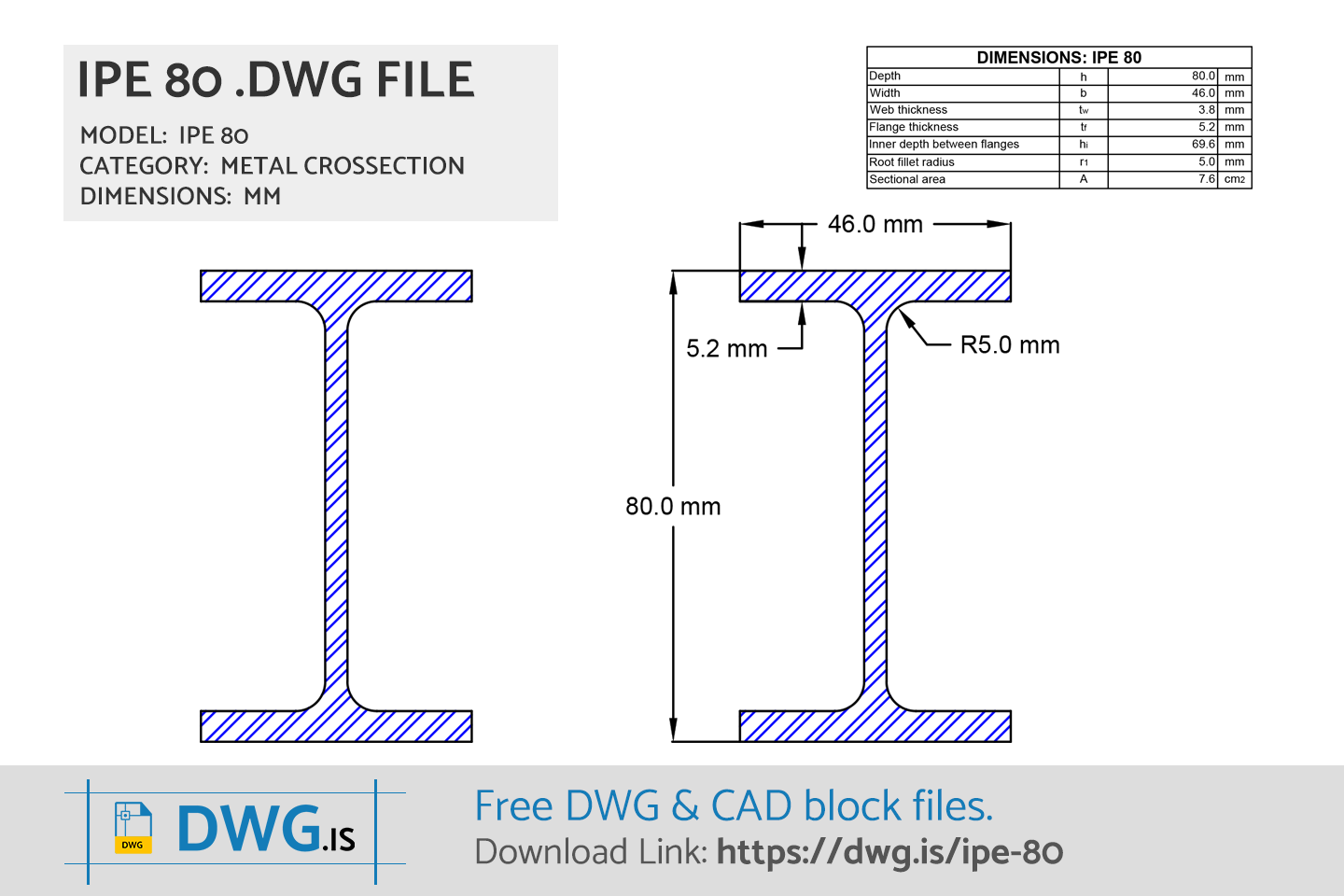

IPE 80 DWG File DownloadDWG DOWNLOAD ⇓
IPE 80 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 80 Dimensions
| IPE 80 Size | |
|---|---|
| Depth | 80.0 mm |
| Width | 46.0 mm |
| Web Thickness | 3.8 mm |
| Flange Thickness | 5.2 mm |
| Inner depth between flanges | 69.9 mm |
| Root Fillet Radius | 5.0 mm |
| Distance | 10.0 mm |
| Sectional Area | 7.64 cm2 |
IPE 80 FAQ
-
What are IPE 80 size?
IPE 80 has dimensions: Depth 80.0 mm, Width 46.0 mm, Web Thickness 3.8 mm, Flange Thickness 5.2 mm, Inner depth between flanges 69.9 mm, Root Fillet Radius 5.0 mm, Distance 10.0 mm, Sectional Area 7.64 cm2.
