HEA 240 DWG file consists of the dimensions and specifications for HEA 240 European Standard Wide Flange H Beams in accordance with former standard Euronorm 53-62. The beam has a depth of 230 mm and a width of 240 mm with a web thickness of 7.5 mm and a flange thickness of 12 mm. The flange has an inner depth of 206 mm and a root fillet radius of 21 mm. The distance between the flange edges is 33 mm with a sectional area of 76.8 cm2. HEA 200 DWG file is ideal for engineers and architects who need the exact measurements for their designs and structures.
HEA 240 AutoCAD Block
HEA 240 Free CAD Block File Downloads

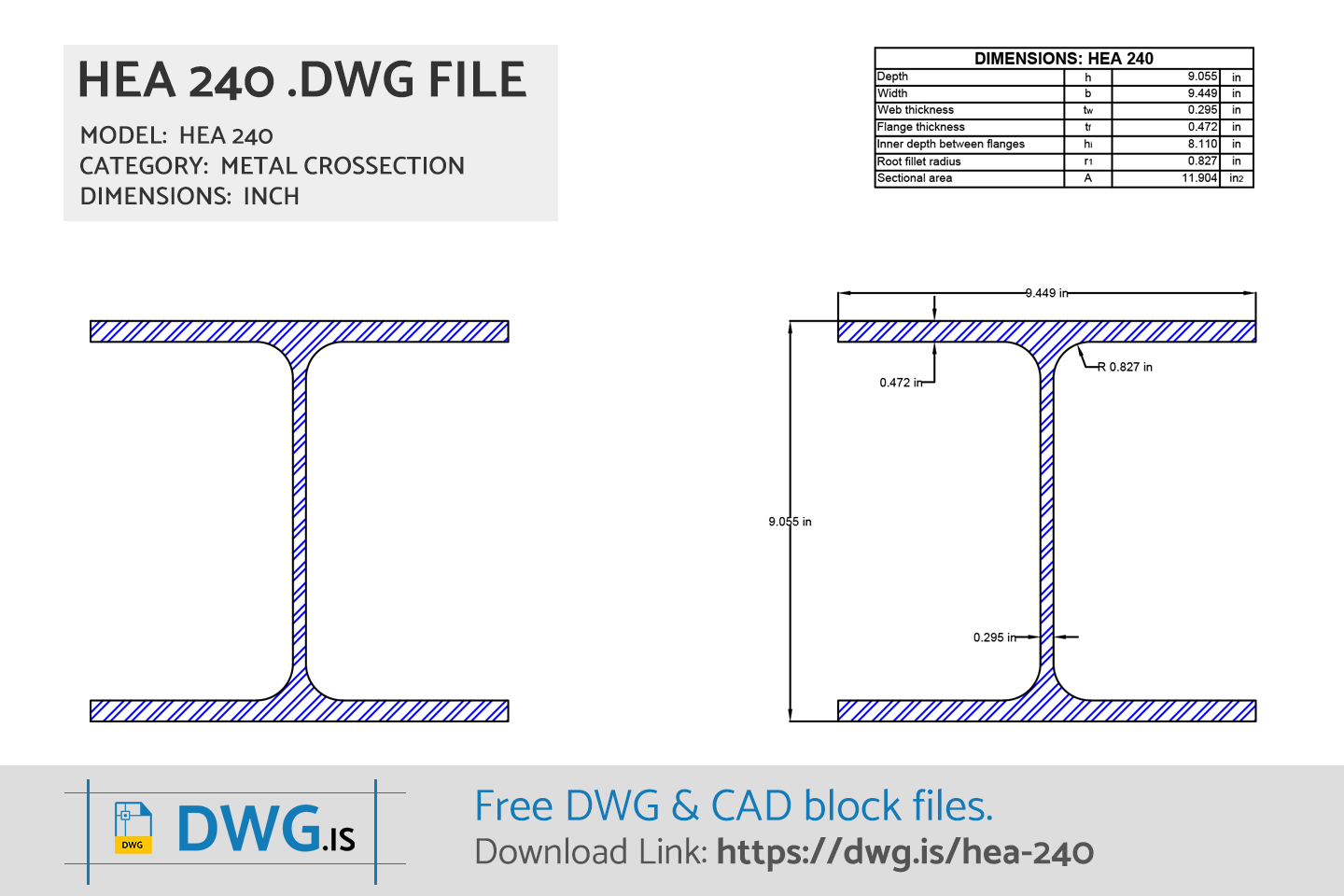

HEA 240 DWG File DownloadDWG DOWNLOAD ⇓

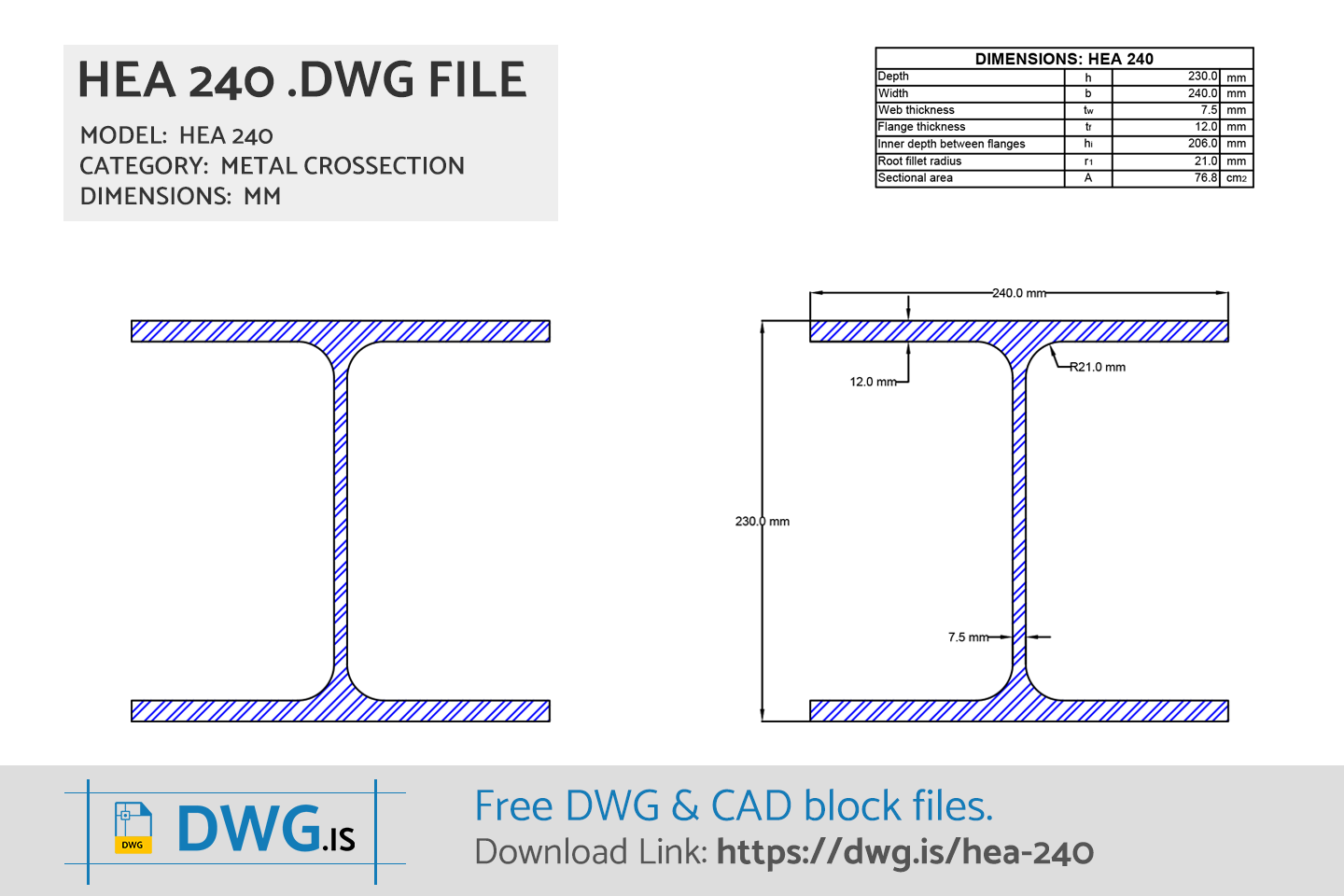

HEA 240 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 240 Dimensions
| HEA 240 Size | |
|---|---|
| Depth | 230.0 mm |
| Width | 240.0 mm |
| Web Thickness | 7.5 mm |
| Flange Thickness | 12.0 mm |
| Flange Inner Depth | 206.0 mm |
| Root Fillet Radius | 21.0 mm |
| Distance | 33.0 mm |
| Sectional Area | 76.8 cm2 |
HEA 240 FAQ
-
What are HEA 240 size?
HEA 240 has dimensions: Depth 230.0 mm, Width 240.0 mm, Web Thickness 7.5 mm, Flange Thickness 12.0 mm, Flange Inner Depth 206.0 mm, Root Fillet Radius 21.0 mm, Distance 33.0 mm, Sectional Area 76.8 cm2.
