HEB 550 AutoCAD Block
HEB 550 Free CAD Block File Downloads
HEB 550 DWG File DownloadDWG DOWNLOAD ⇓

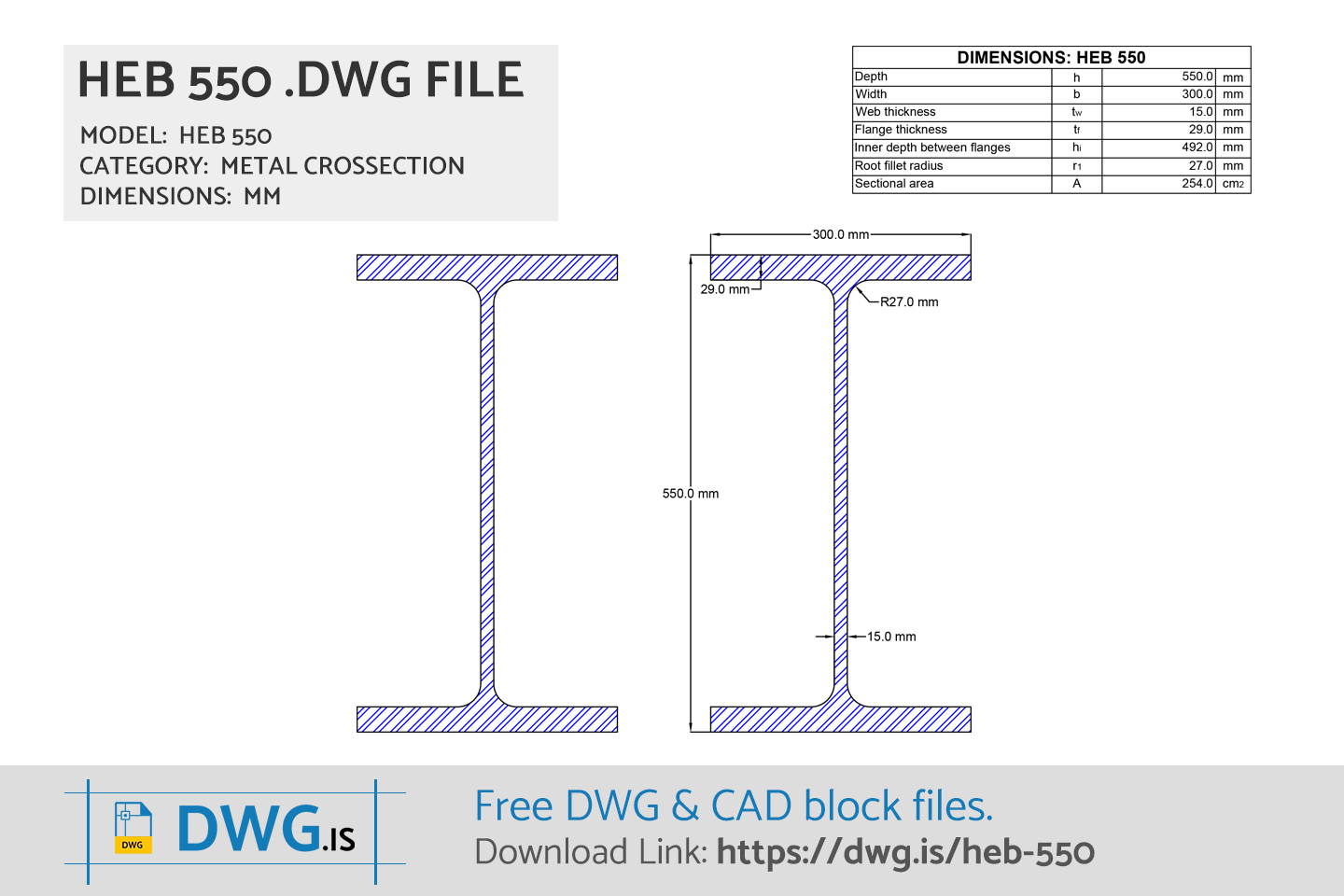

HEB 550 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 550 Dimensions
| HEB 550 Size | |
|---|---|
| Depth | 550.0 mm |
| Width | 300.0 mm |
| Web Thickness | 15.0 mm |
| Flange Thickness | 29.0 mm |
| Flange Inner Depth | 492.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 438.0 mm |
| Sectional Area | 254.1 cm2 |
HEB 550 FAQ
-
What are HEB 550 size?
HEB 550 has dimensions: Depth 550.0 mm, Width 300.0 mm, Web Thickness 15.0 mm, Flange Thickness 29.0 mm, Flange Inner Depth 492.0 mm, Root Fillet Radius 27.0 mm, Distance 438.0 mm, Sectional Area 254.1 cm2.
