IPE 600 Steel Beam Cross-section Free DWG File is a high-quality 3D model that has been designed to meet Euronorm 19-57 and DIN 1025-5 standards. It features a depth of 600mm, width of 220mm, web thickness of 12mm and flange thickness of 19mm.
It also has an inner depth between flanges of 562mm, with a root fillet radius of 24mm and a distance of 43mm. The sectional area of this steel beam is 156 cm2. This model is perfect for any construction project, and can be used as a reference for any calculations that may be needed. It is also a great asset for any CAD library.
IPE 600 AutoCAD Block
IPE 600 Free CAD Block File Downloads
IPE 600 DWG File DownloadDWG DOWNLOAD ⇓

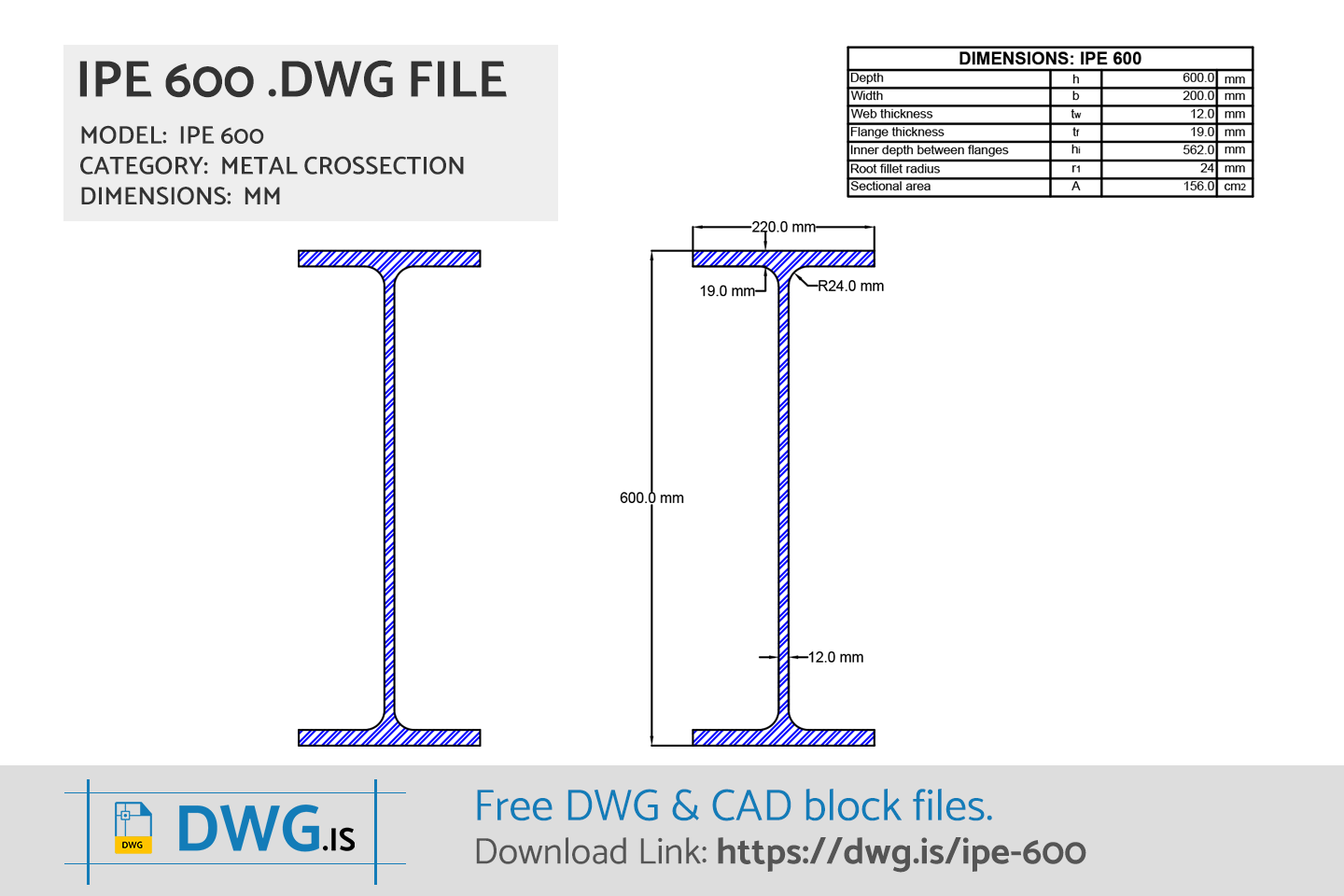

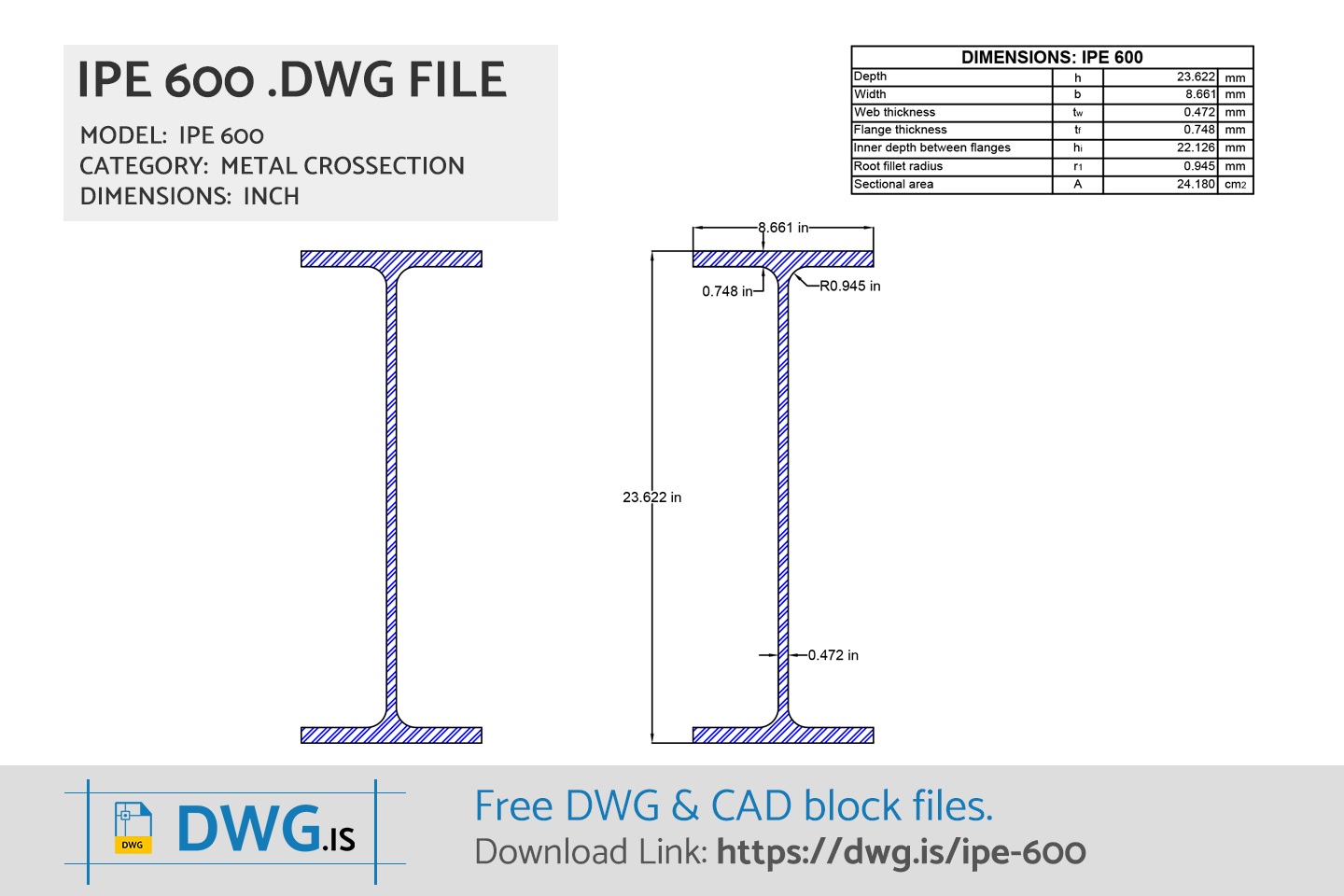

IPE 600 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 600 Dimensions
| IPE 600 Size | |
|---|---|
| Depth | 600.0 mm |
| Width | 220.0 mm |
| Web Thickness | 12.0 mm |
| Flange Thickness | 19.0 mm |
| Inner depth between flanges | 562.0 mm |
| Root Fillet Radius | 24.0 mm |
| Distance | 43.0 mm |
| Sectional Area | 156.0 cm2 |
IPE 600 FAQ
-
What are IPE 600 size?
IPE 600 has dimensions: Depth 600.0 mm, Width 220.0 mm, Web Thickness 12.0 mm, Flange Thickness 19.0 mm, Inner depth between flanges 562.0 mm, Root Fillet Radius 24.0 mm, Distance 43.0 mm, Sectional Area 156.0 cm2.
