UPN 200 Tapered Flange Channel Cross-section Free DWG File is a versatile and efficient design for a wide variety of building and construction uses. The dimensions of the channel are 200mm deep, 75 mm wide, with a web thickness of 8.5mm, flange thickness of 11.5mm and a root fillet radius of 11.5 mm.
The toe radius of the channel is 6mm and the distance between the two sides is 37.5mm. The sectional area of the channel is 32.2 cm2, providing strong support and reliability for whatever project you are working on. This DWG file is easy to use and customize, giving you the flexibility to get the most out of your construction project.

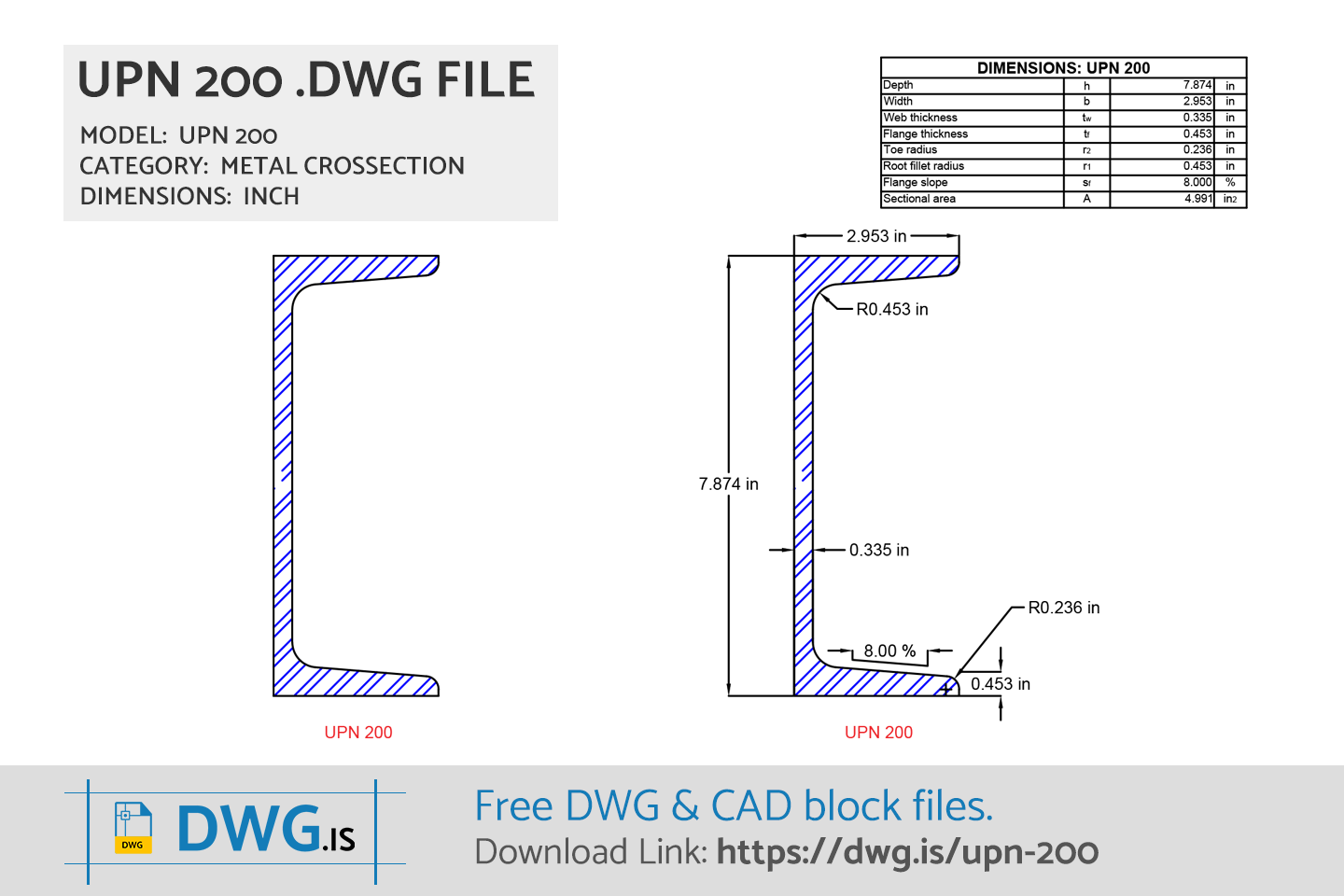

UPN 200 AutoCAD Block
UPN 200 Free CAD Block File Downloads
UPN 200 DWG File DownloadDWG DOWNLOAD ⇓

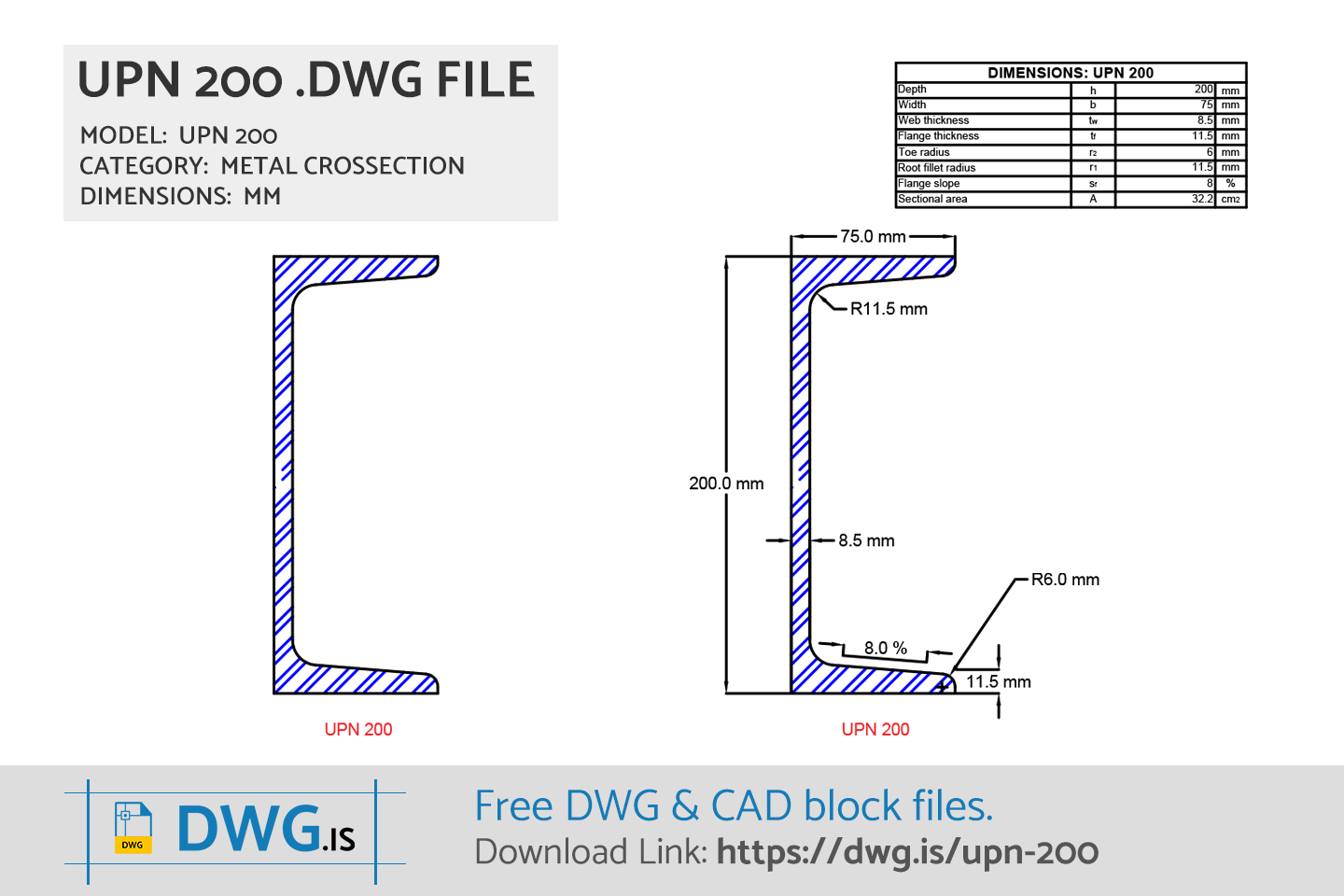

UPN 200 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 200 Dimensions
| UPN 200 Size | |
|---|---|
| Depth | 200.0 mm |
| Width | 75.0 mm |
| Web Thickness | 8.5 mm |
| Flange Thickness | 11.5 mm |
| Root Fillet Radius | 11.5 mm |
| Toe Radius | 6.0 mm |
| Distance | 37.5 mm |
| Sectional Area | 32.2 cm2 |
UPN 200 FAQ
-
What are UPN 200 size?
UPN 200 has dimensions: Depth 200.0 mm, Width 75.0 mm, Web Thickness 8.5 mm, Flange Thickness 11.5 mm, Root Fillet Radius 11.5 mm, Toe Radius 6.0 mm, Distance 37.5 mm, Sectional Area 32.2 cm2.
