IPE 330 Steel Beam Cross-section Free DWG File is a high-quality CAD drawing that is compliant with both the Euronorm 19-57 and DIN 1025-5 standards. It features a depth of 330 mm, a width of 160 mm, a web thickness of 7.5 mm, a flange thickness of 110.5 mm, an inner depth between flanges of 307 mm, a root fillet radius of 18 mm, a distance of 30 mm, and a sectional area of 62.61 cm2.
This CAD drawing is perfect for engineers and architects who need a high-quality, accurate steel beam cross-section. Its easy-to-read dimensions and precise measurements make it ideal for any commercial, industrial, or residential construction projects.

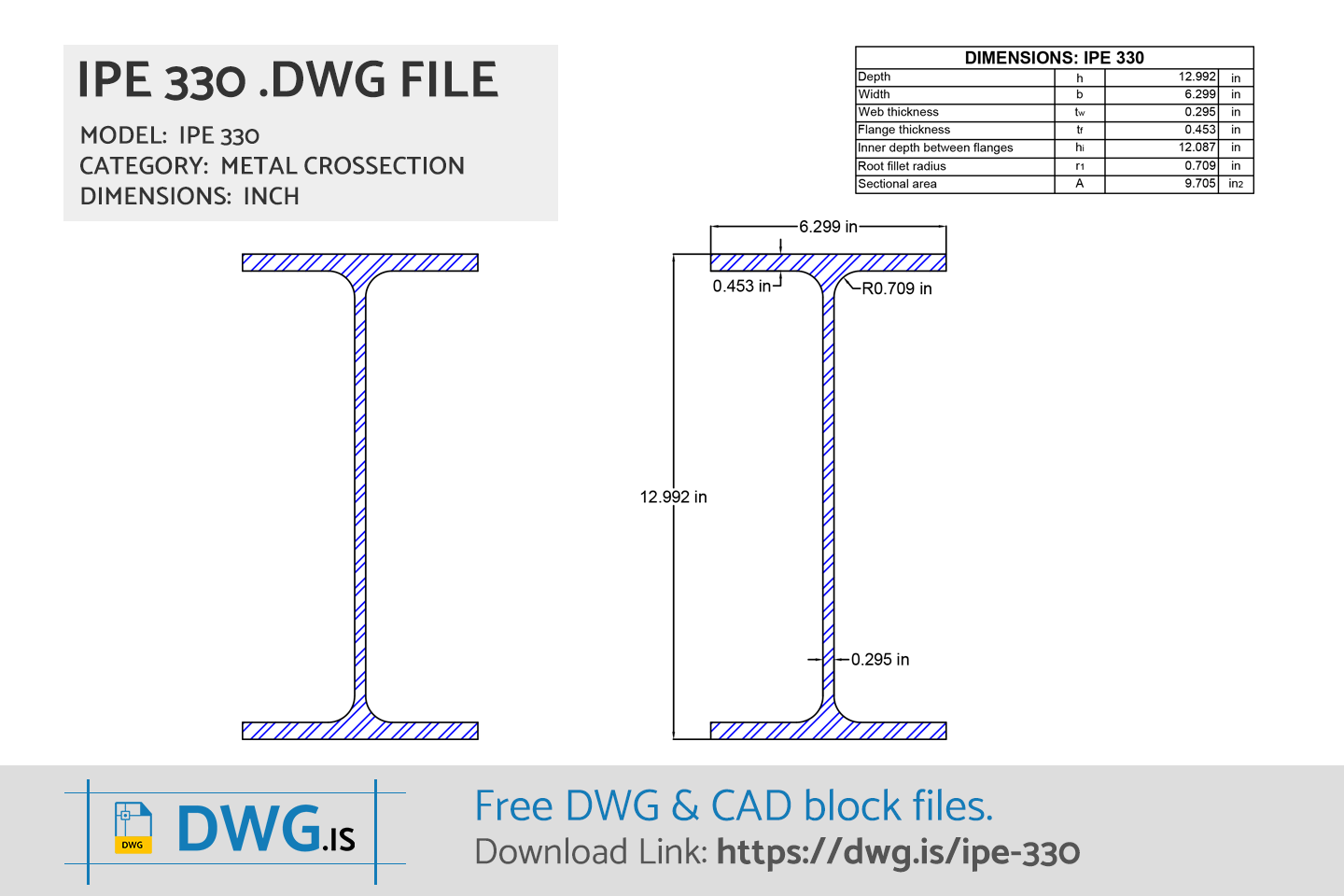

IPE 330 AutoCAD Block
IPE 330 Free CAD Block File Downloads
IPE 330 DWG File DownloadDWG DOWNLOAD ⇓
IPE 330 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 330 Dimensions
| IPE 330 Size | |
|---|---|
| Depth | 330.0 mm |
| Width | 160.0 mm |
| Web Thickness | 7.5 mm |
| Flange Thickness | 110.5 mm |
| Inner depth between flanges | 307.0 mm |
| Root Fillet Radius | 18.0 mm |
| Distance | 30.0 mm |
| Sectional Area | 62.61 cm2 |
IPE 330 FAQ
-
What are IPE 330 size?
IPE 330 has dimensions: Depth 330.0 mm, Width 160.0 mm, Web Thickness 7.5 mm, Flange Thickness 110.5 mm, Inner depth between flanges 307.0 mm, Root Fillet Radius 18.0 mm, Distance 30.0 mm, Sectional Area 62.61 cm2.
