HEB 500 AutoCAD Block
HEB 500 Free CAD Block File Downloads
HEB 500 DWG File DownloadDWG DOWNLOAD ⇓

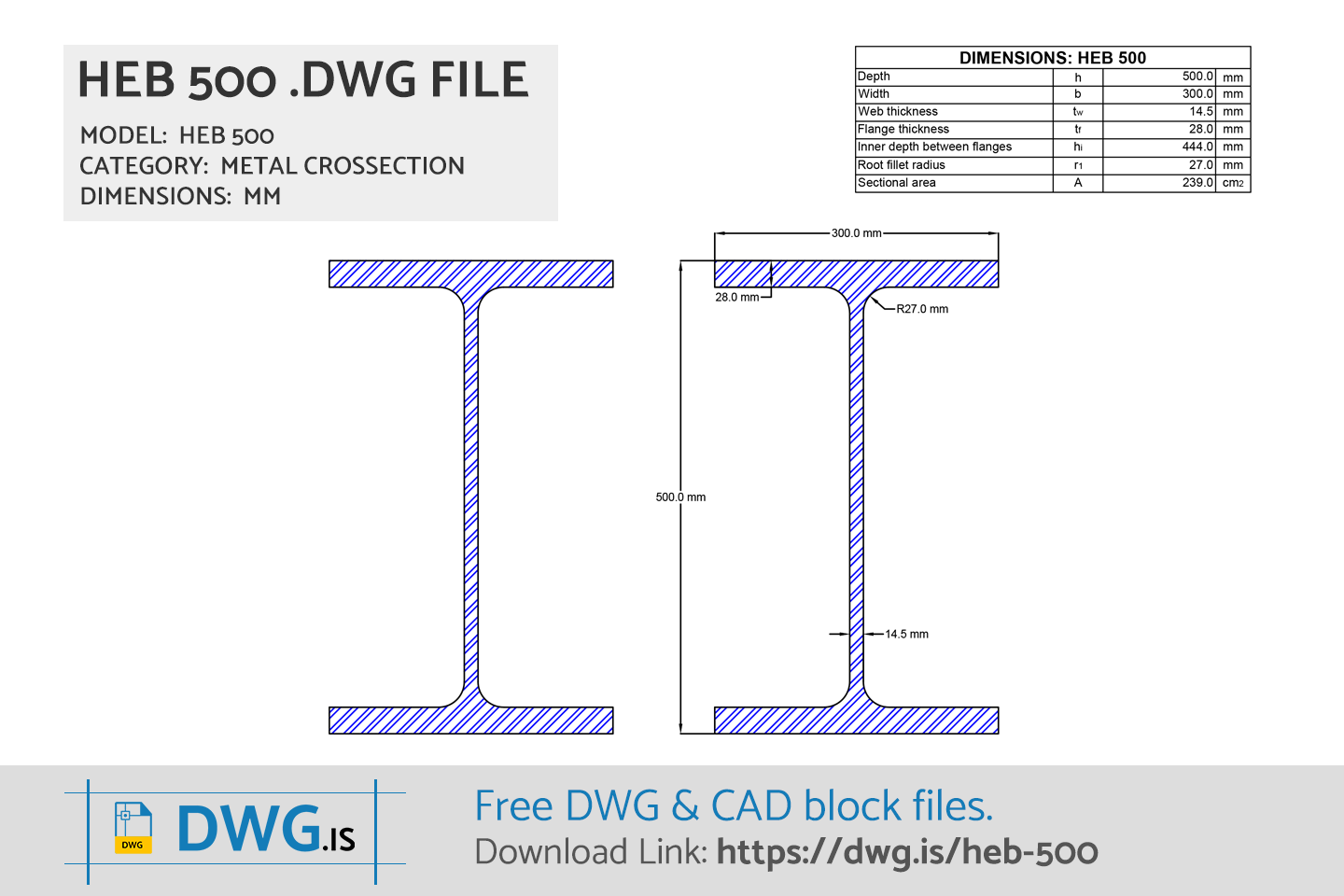

HEB 500 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 500 Dimensions
| HEB 500 Size | |
|---|---|
| Depth | 500.0 mm |
| Width | 300.0 mm |
| Web Thickness | 14.5 mm |
| Flange Thickness | 28.0 mm |
| Flange Inner Depth | 444.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 390.0 mm |
| Sectional Area | 238.6 cm2 |
HEB 500 FAQ
-
What are HEB 500 size?
HEB 500 has dimensions: Depth 500.0 mm, Width 300.0 mm, Web Thickness 14.5 mm, Flange Thickness 28.0 mm, Flange Inner Depth 444.0 mm, Root Fillet Radius 27.0 mm, Distance 390.0 mm, Sectional Area 238.6 cm2.
