HEB 340 AutoCAD Block
HEB 340 Free CAD Block File Downloads
HEB 340 DWG File DownloadDWG DOWNLOAD ⇓
HEB 340 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓

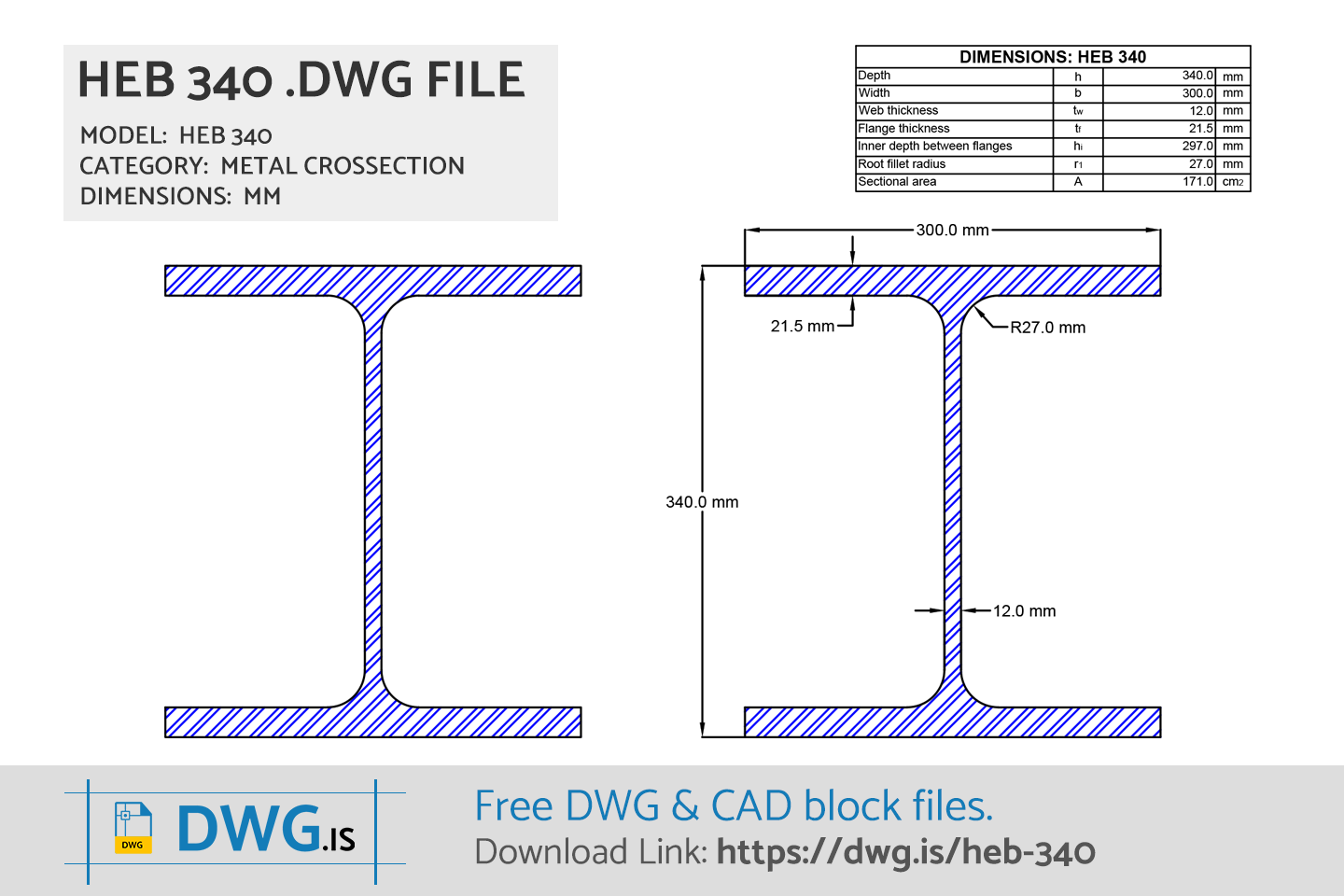

WITH DIMENSION (mm)
HEB 340 Dimensions
| HEB 340 Size | |
|---|---|
| Depth | 340.0 mm |
| Width | 300.0 mm |
| Web Thickness | 12.0 mm |
| Flange Thickness | 21.5 mm |
| Flange Inner Depth | 297.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 243.0 mm |
| Sectional Area | 170.9 cm2 |
HEB 340 FAQ
-
What are HEB 340 size?
HEB 340 has dimensions: Depth 340.0 mm, Width 300.0 mm, Web Thickness 12.0 mm, Flange Thickness 21.5 mm, Flange Inner Depth 297.0 mm, Root Fillet Radius 27.0 mm, Distance 243.0 mm, Sectional Area 170.9 cm2.
