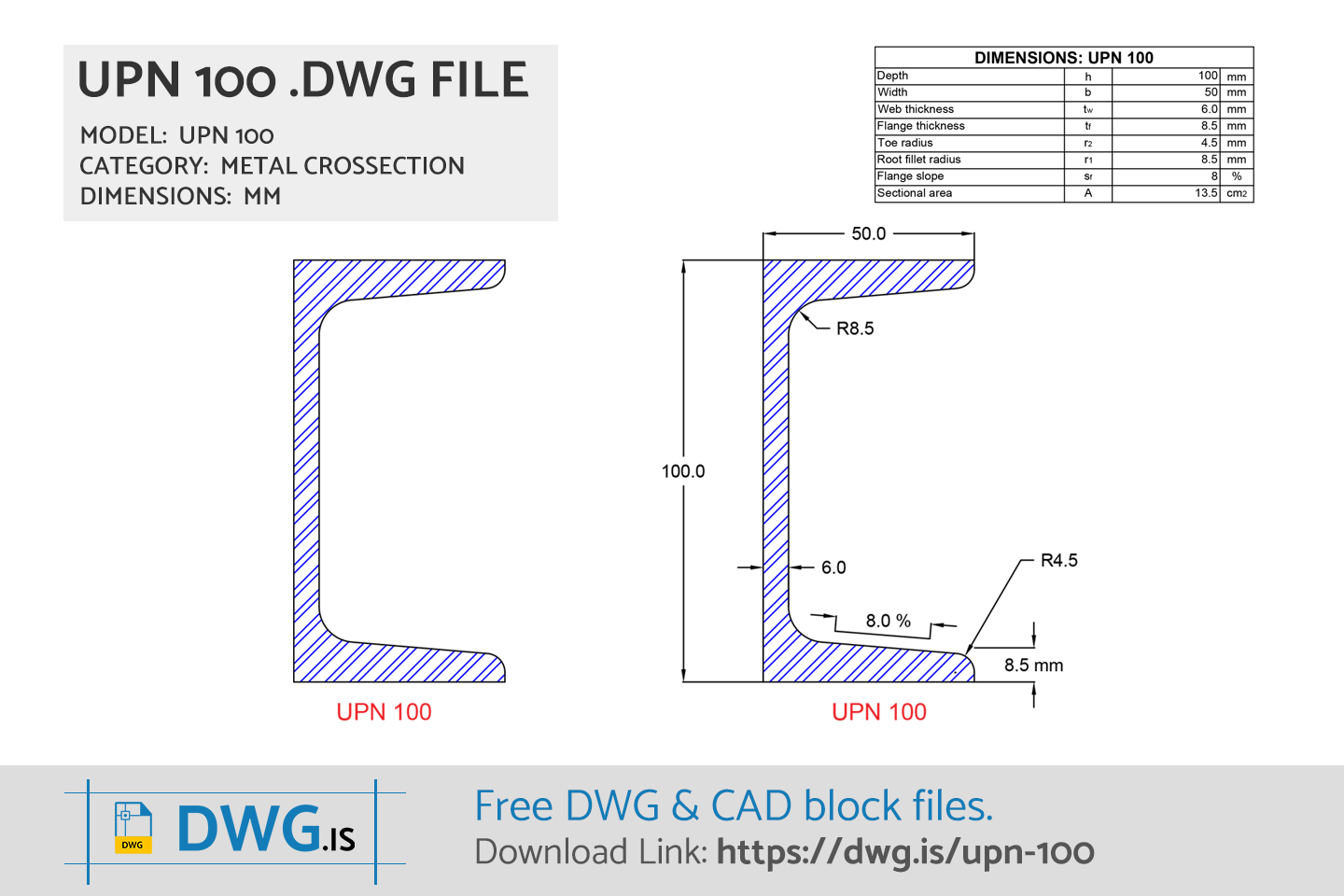

UPN 100 Tapered Flange Channel Cross-section Free DWG File is a useful design element for a variety of construction projects. This flange channel has a depth of 100 mm and a width of 50 mm. The web thickness is 6 mm and the flange thickness is 8.5 mm. The root fillet radius is 8.5 mm and the toe radius is 4.5 mm. The distance between the two points is 25 mm and the sectional area for this channel is 13.5 cm2
UPN 100 DWG File flange channel is ideal for providing support for a variety of structures and building elements. It is a strong and reliable design that can be used in many different applications, from commercial to residential projects.

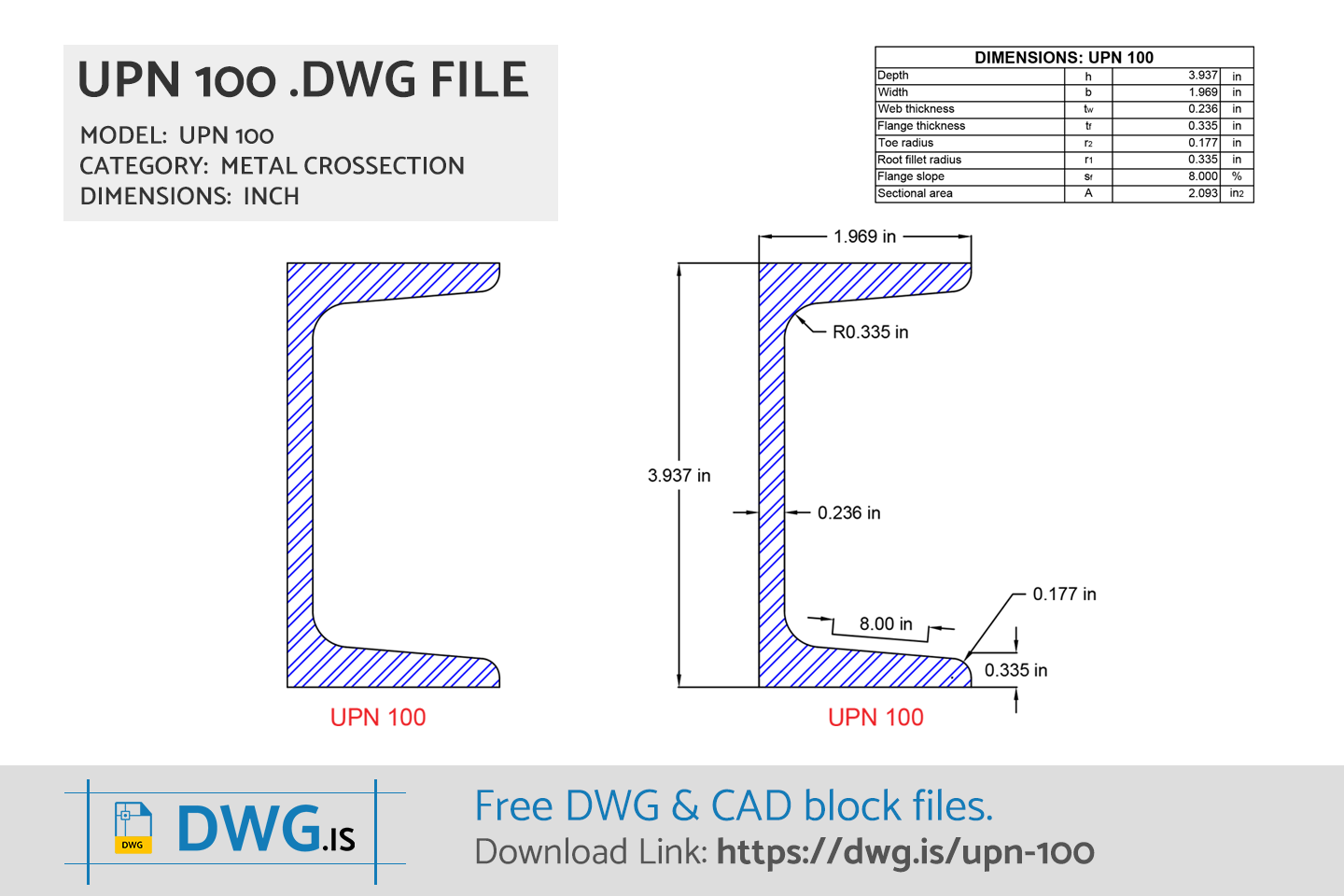

UPN 100 AutoCAD Block
UPN 100 Free CAD Block File Downloads
UPN 100 DWG File DownloadDWG DOWNLOAD ⇓
UPN 100 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 100 Dimensions
| UPN 100 Size | |
|---|---|
| Depth | 100.0 mm |
| Width | 50.0 mm |
| Web Thickness | 6.0 mm |
| Flange Thickness | 8.5 mm |
| Root Fillet Radius | 8.5 mm |
| Toe Radius | 4.5 mm |
| Distance | 25.0 mm |
| Sectional Area | 13.5 cm2 |
UPN 100 FAQ
-
What are UPN 100 size?
UPN 100 has dimensions: Depth 100.0 mm, Width 50.0 mm, Web Thickness 6.0 mm, Flange Thickness 8.5 mm, Root Fillet Radius 8.5 mm, Toe Radius 4.5 mm, Distance 25.0 mm, Sectional Area 13.5 cm2.
