HEA 280 DWG file contains the detailed dimensions and specifications for the European Standard Wide Flange H Beams HEA 280. It includes the dimensions of the beam such as the depth of 270 mm, width of 280 mm, web thickness of 8 mm, flange thickness of 13 mm, flange inner depth of 244 mm, root fillet radius of 24 mm, distance of 37 mm and sectional area of 97.3 cm2. All these specifications are in accordance with the former standard Euronorm 53-62 and ensure the utmost precision and quality in the production of these beams. It is an invaluable resource for architects, engineers and other professionals to ensure the best possible results in their work.
HEA 280 AutoCAD Block
HEA 280 Free CAD Block File Downloads
HEA 280 DWG File DownloadDWG DOWNLOAD ⇓

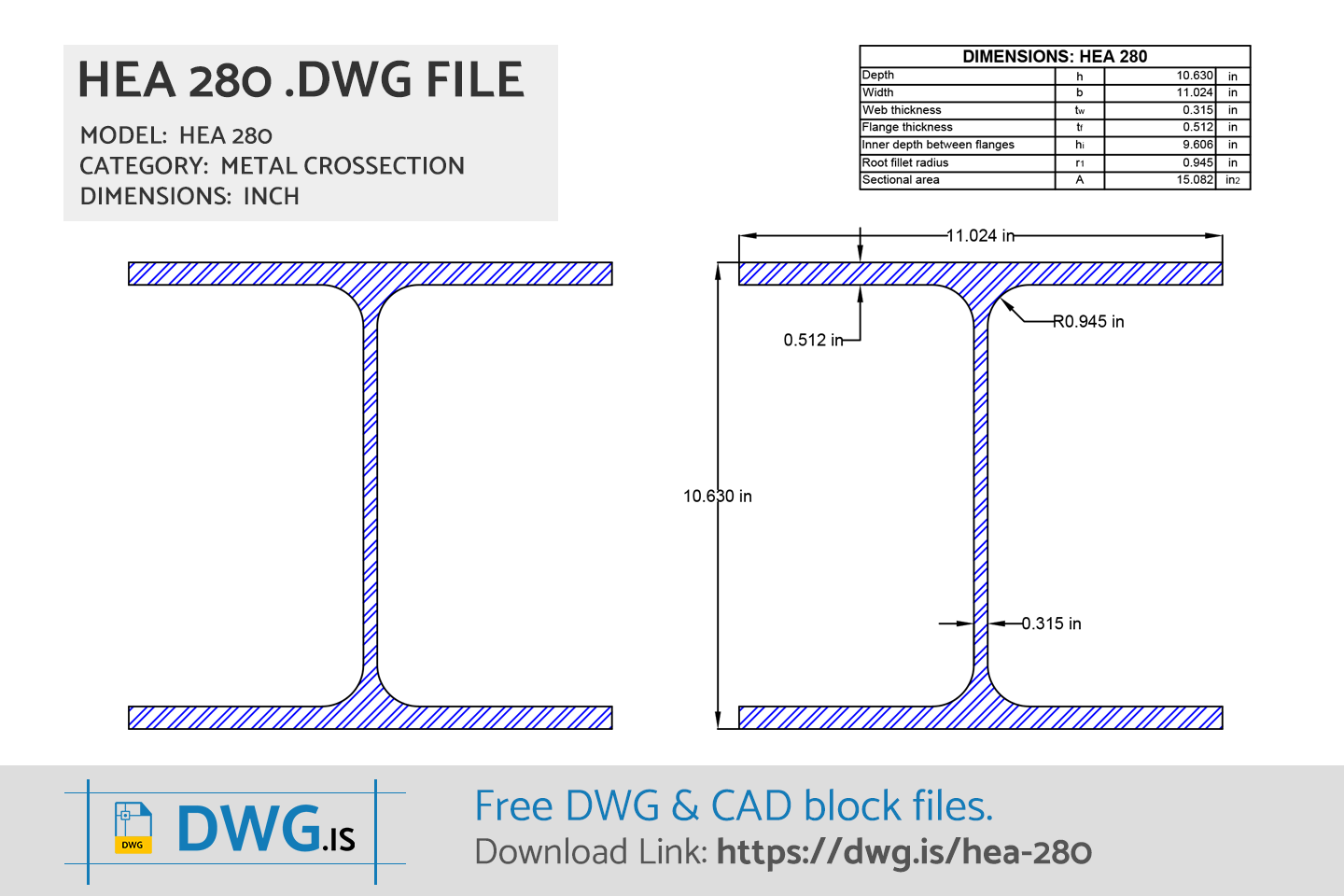

HEA 280 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 280 Dimensions
| HEA 280 Size | |
|---|---|
| Depth | 270.0 mm |
| Width | 280.0 mm |
| Web Thickness | 8.0 mm |
| Flange Thickness | 13.0 mm |
| Flange Inner Depth | 244.0 mm |
| Root Fillet Radius | 24.0 mm |
| Distance | 37.0 mm |
| Sectional Area | 97.3 cm2 |
HEA 280 FAQ
-
What are HEA 280 size?
HEA 280 has dimensions: Depth 270.0 mm, Width 280.0 mm, Web Thickness 8.0 mm, Flange Thickness 13.0 mm, Flange Inner Depth 244.0 mm, Root Fillet Radius 24.0 mm, Distance 37.0 mm, Sectional Area 97.3 cm2.
