HEB 700 AutoCAD Block
HEB 700 Free CAD Block File Downloads
HEB 700 DWG File DownloadDWG DOWNLOAD ⇓

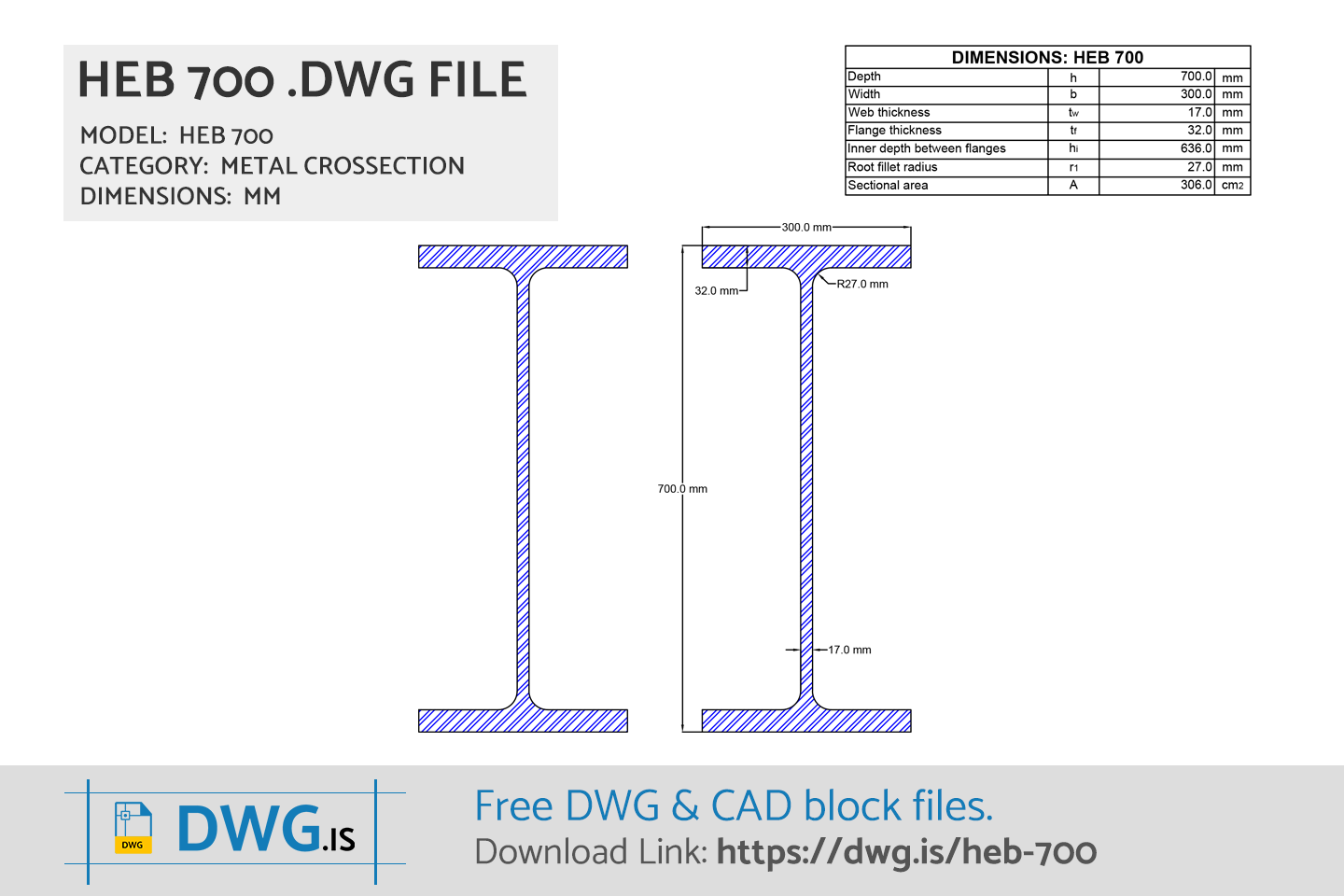

HEB 700 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 700 Dimensions
| HEB 700 Size | |
|---|---|
| Depth | 700.0 mm |
| Width | 300.0 mm |
| Web Thickness | 17.0 mm |
| Flange Thickness | 32.0 mm |
| Flange Inner Depth | 636.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 582.0 mm |
| Sectional Area | 306.4 cm2 |
HEB 700 FAQ
-
What are HEB 700 size?
HEB 700 has dimensions: Depth 700.0 mm, Width 300.0 mm, Web Thickness 17.0 mm, Flange Thickness 32.0 mm, Flange Inner Depth 636.0 mm, Root Fillet Radius 27.0 mm, Distance 582.0 mm, Sectional Area 306.4 cm2.
