UPN 380 Flange Channel Cross-section Free DWG File is a free DWG file that provides detailed measurements and specifications for a UPN 380 Tapered Flange Channel Cross-section.
UPN 380 DWG file contains measurements for the depth of 380 mm, width of 102 mm, web thickness of 13.5 mm, flange thickness of 16 mm, root fillet radius of 16 mm, toe radius of 8 mm, distance of 44.3 mm, and sectional area of 80.4 cm2. This file is perfect for those who need a precise and accurate template for a UPN 380 Tapered Flange Channel Cross-section. This file is completely free and can be used by anyone.

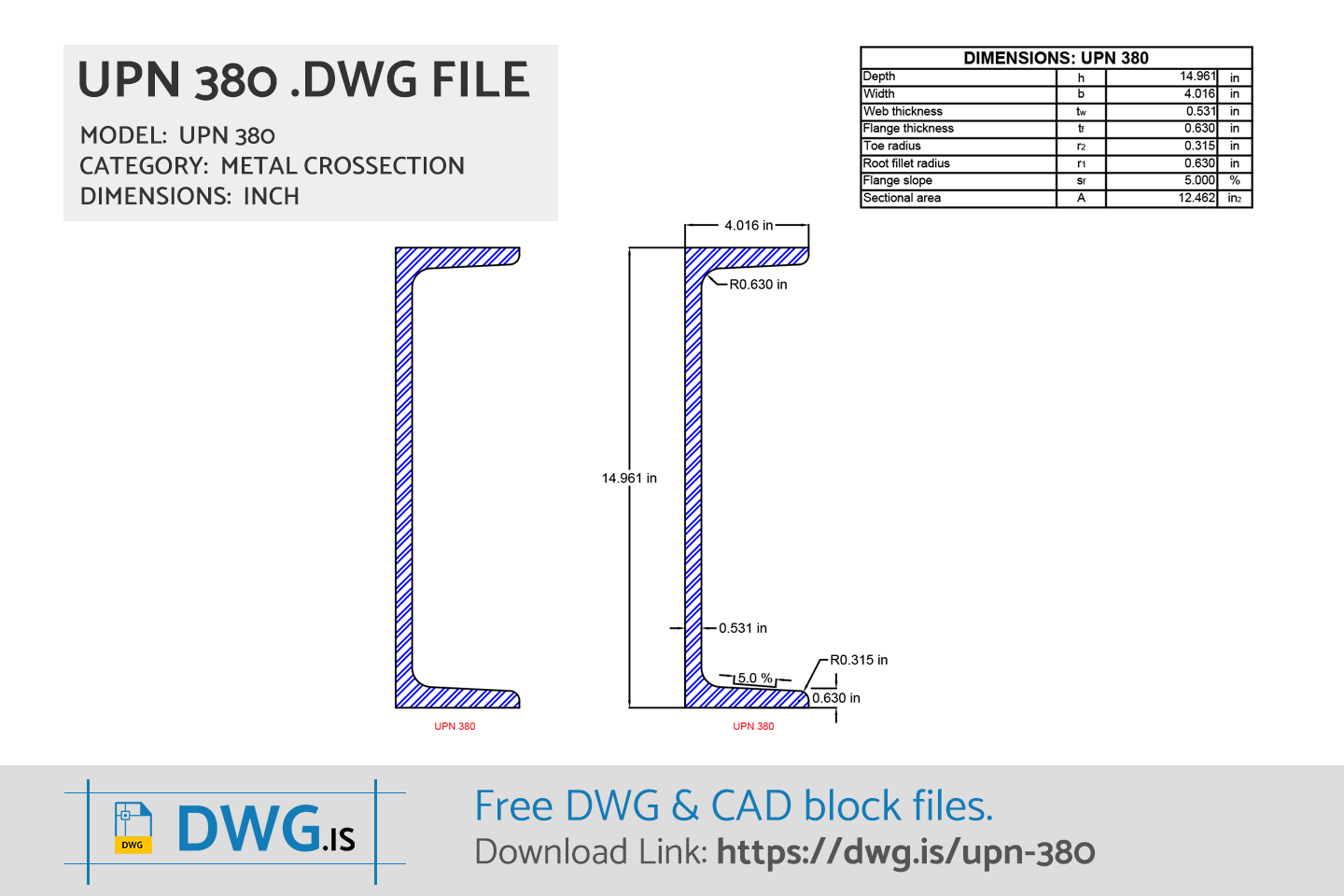

UPN 380 AutoCAD Block
UPN 380 Free CAD Block File Downloads
UPN 380 DWG File DownloadDWG DOWNLOAD ⇓

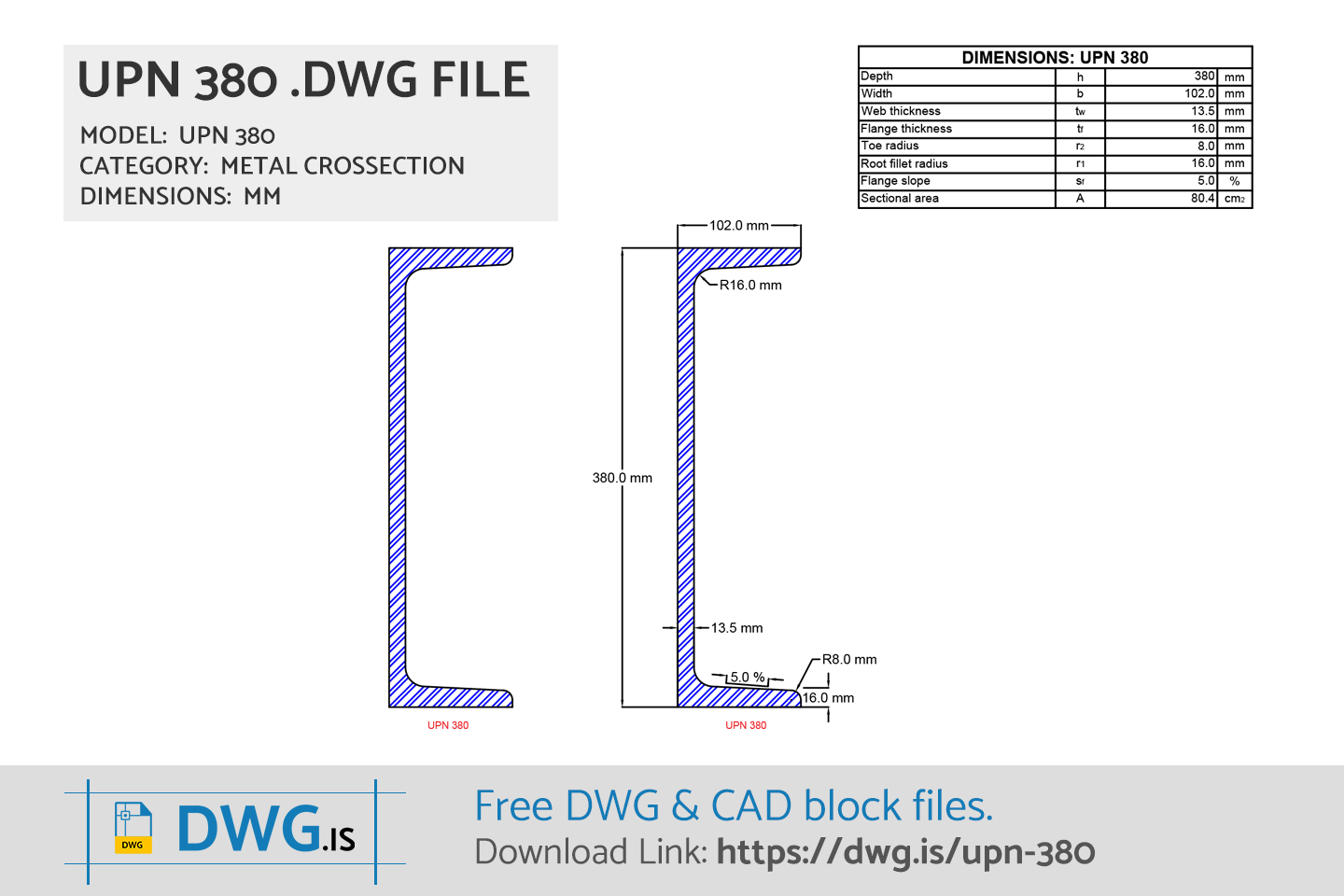

UPN 380 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 380 Dimensions
| UPN 380 Size | |
|---|---|
| Depth | 380.0 mm |
| Width | 102.0 mm |
| Web Thickness | 13.5 mm |
| Flange Thickness | 16.0 mm |
| Root Fillet Radius | 16.0 mm |
| Toe Radius | 8.0 mm |
| Distance | 44.3 mm |
| Sectional Area | 80.4 cm2 |
UPN 380 FAQ
-
What are UPN 380 size?
UPN 380 has dimensions: Depth 380.0 mm, Width 102.0 mm, Web Thickness 13.5 mm, Flange Thickness 16.0 mm, Root Fillet Radius 16.0 mm, Toe Radius 8.0 mm, Distance 44.3 mm, Sectional Area 80.4 cm2.
