IPE 200 Steel Beam Cross-section Free DWG File is an essential tool for engineers and architects who need to design and build structures. This file is compliant with the Euronorm 19-57 and DIN 1025-5 standards, which are highly regarded in the construction industry.
IPE 200 profile has a depth of 200 mm, a width of 100 mm, a web thickness of 5.6 mm, a flange thickness of 8.5 mm, an inner depth between flanges of 183 mm, a root fillet radius of 12 mm, a distance of 21 mm, and a sectional area of 28.48 cm2. This DWG file is a great resource for architects and engineers who want to create strong and reliable structures. The accuracy of the file ensures that all calculations and measurements are accurate and up-to-date.

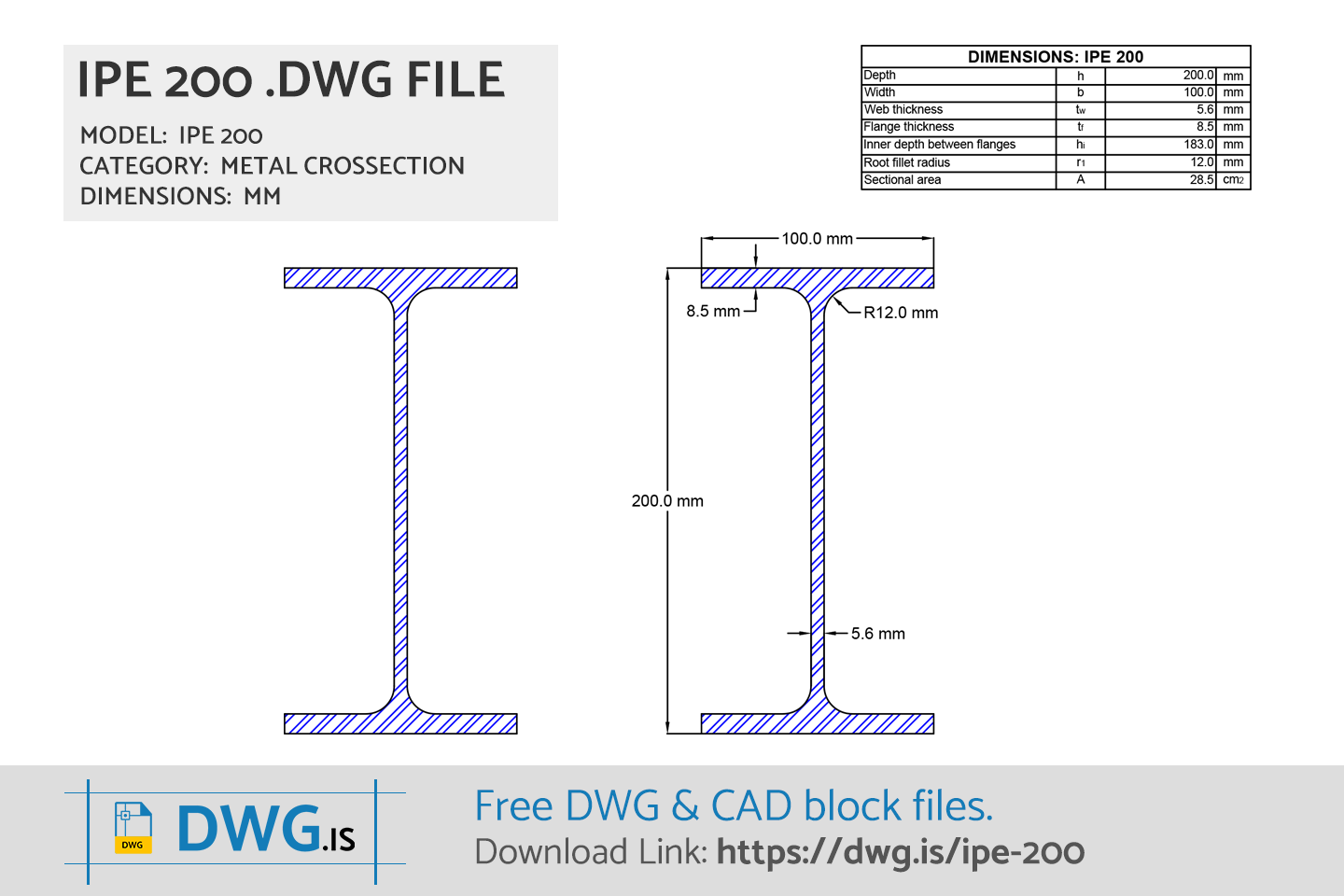

IPE 200 AutoCAD Block
IPE 200 Free CAD Block File Downloads
IPE 200 DWG File DownloadDWG DOWNLOAD ⇓
IPE 200 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 200 Dimensions
| IPE 200 Size | |
|---|---|
| Depth | 200.0 mm |
| Width | 100.0 mm |
| Web Thickness | 5.6 mm |
| Flange Thickness | 8.5 mm |
| Inner depth between flanges | 183.0 mm |
| Root Fillet Radius | 12.0 mm |
| Distance | 21.0 mm |
| Sectional Area | 28.48 cm2 |
IPE 200 FAQ
-
What are IPE 200 size?
IPE 200 has dimensions: Depth 200.0 mm, Width 100.0 mm, Web Thickness 5.6 mm, Flange Thickness 8.5 mm, Inner depth between flanges 183.0 mm, Root Fillet Radius 12.0 mm, Distance 21.0 mm, Sectional Area 28.48 cm2.
