HEA 260 European Standard Wide Flange H beams are made of high-quality steel with a thickness of 7.5 mm and a width of 260 mm. They are designed to provide a sturdy and durable construction for your projects. The beams are also designed with a web thickness of 7.5 mm and a flange thickness of 12.5 mm. The beams also have a flange inner depth of 225 mm and a root fillet radius of 24 mm. The HEA 260 European Standard Wide Flange H beams are also designed with a distance of 37 mm and a sectional area of 86.8 cm2.

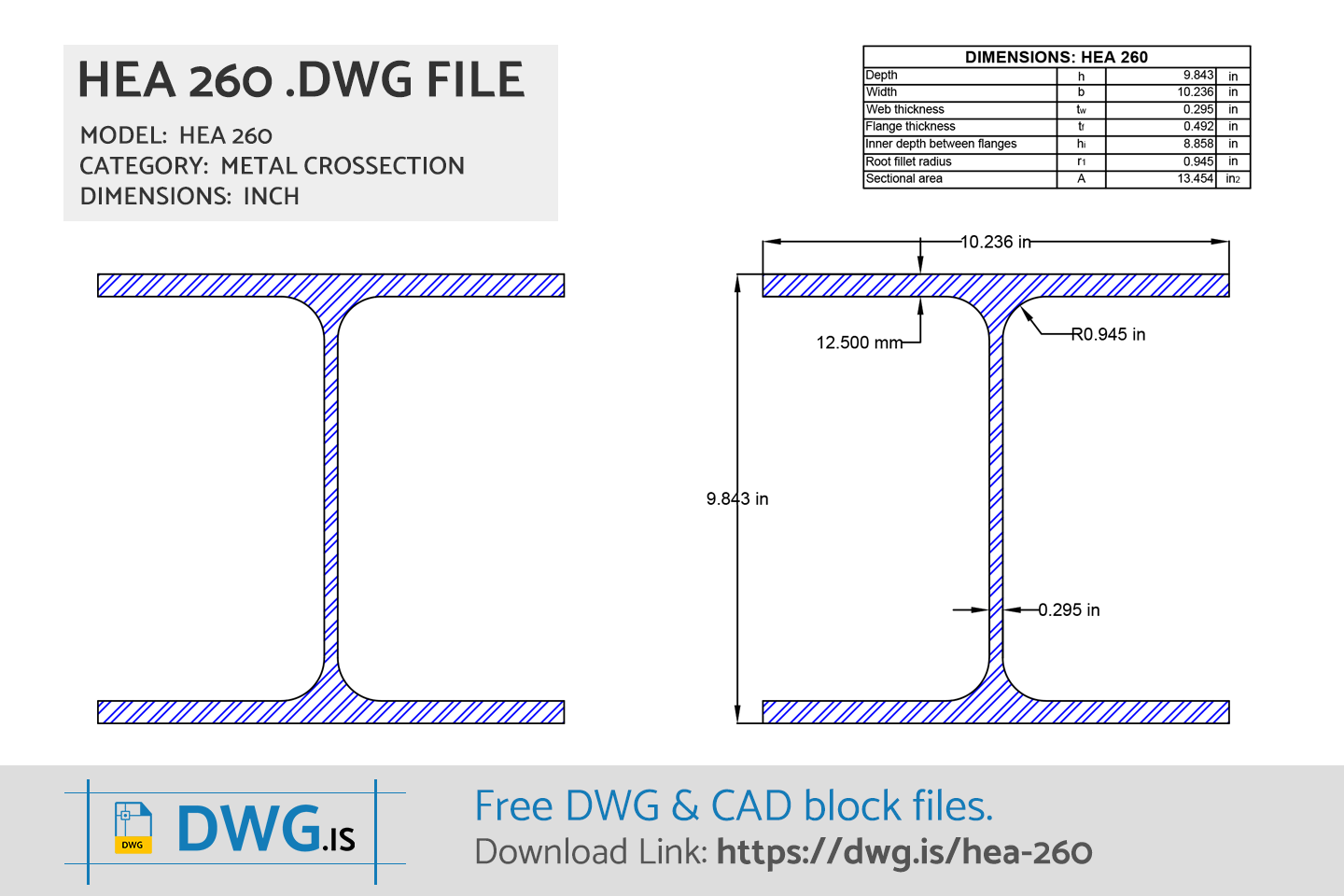

HEA 260 AutoCAD Block
HEA 260 Free CAD Block File Downloads
HEA 260 DWG File DownloadDWG DOWNLOAD ⇓

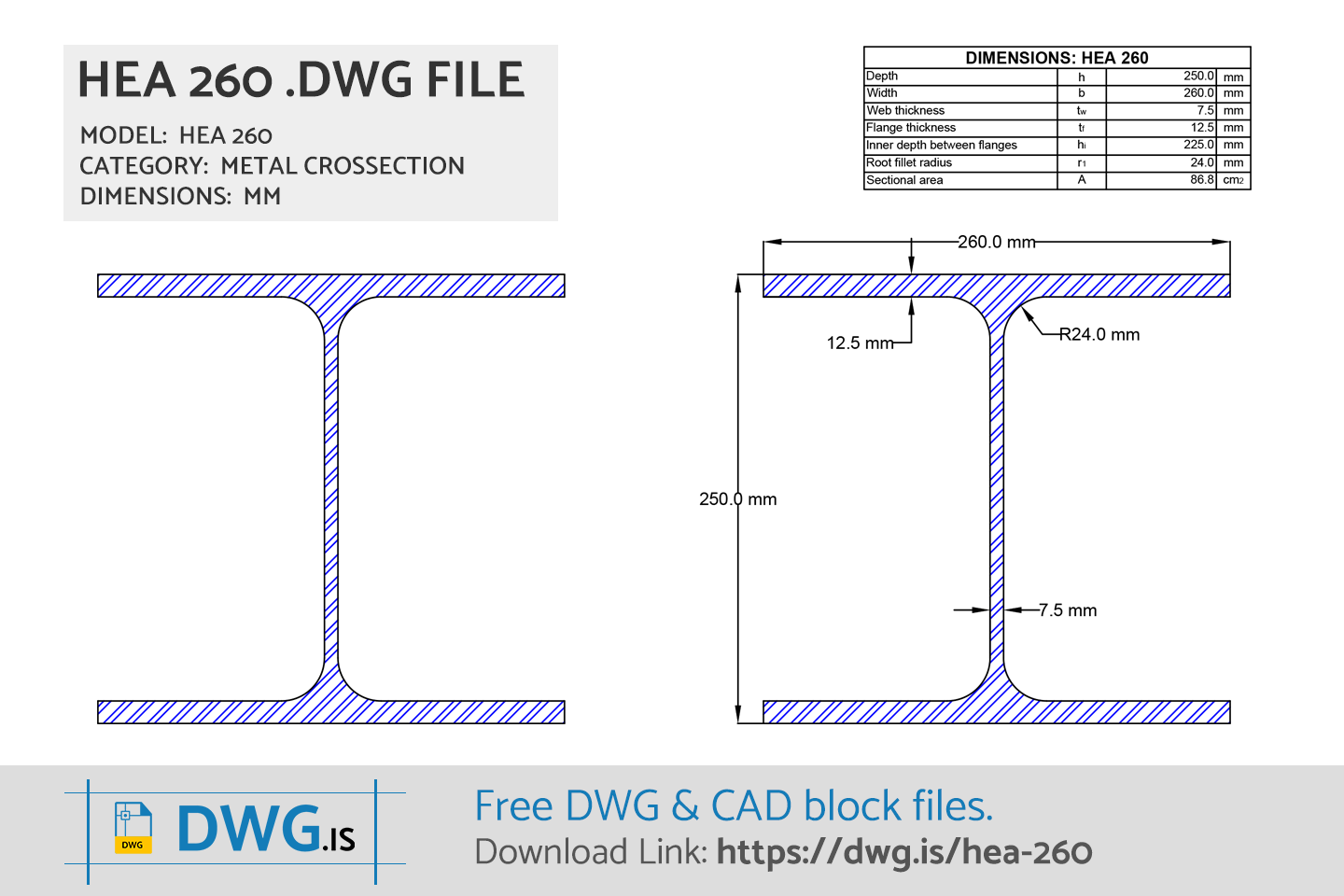

HEA 260 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 260 Dimensions
| HEA 260 Size | |
|---|---|
| Depth | 250.0 mm |
| Width | 260.0 mm |
| Web Thickness | 7.5 mm |
| Flange Thickness | 12.5 mm |
| Flange Inner Depth | 225.0 mm |
| Root Fillet Radius | 24.0 mm |
| Distance | 37.0 mm |
| Sectional Area | 86.8 cm2 |
HEA 260 FAQ
-
What are HEA 260 size?
HEA 260 has dimensions: Depth 250.0 mm, Width 260.0 mm, Web Thickness 7.5 mm, Flange Thickness 12.5 mm, Flange Inner Depth 225.0 mm, Root Fillet Radius 24.0 mm, Distance 37.0 mm, Sectional Area 86.8 cm2.
