IPE 360 DWG File is a high-quality DWG file for a cross-section of an IPE 360 steel beam. This beam has been designed to meet Euronorm 19-57 and DIN 1025-5 standards and has a depth of 360 mm, a width of 170 mm, a web thickness of 8 mm, a flange thickness of 12.7 mm, an inner depth between flanges of 334.6 mm, a root fillet radius of 18 mm and a distance of 31 mm. Its sectional area is 72.73 cm2.
This DWG file is perfect for use in construction and industrial projects, as it is accurate, reliable and easy to use. It is also suitable for both professionals and beginners.
IPE 360 AutoCAD Block
IPE 360 Free CAD Block File Downloads
IPE 360 DWG File DownloadDWG DOWNLOAD ⇓

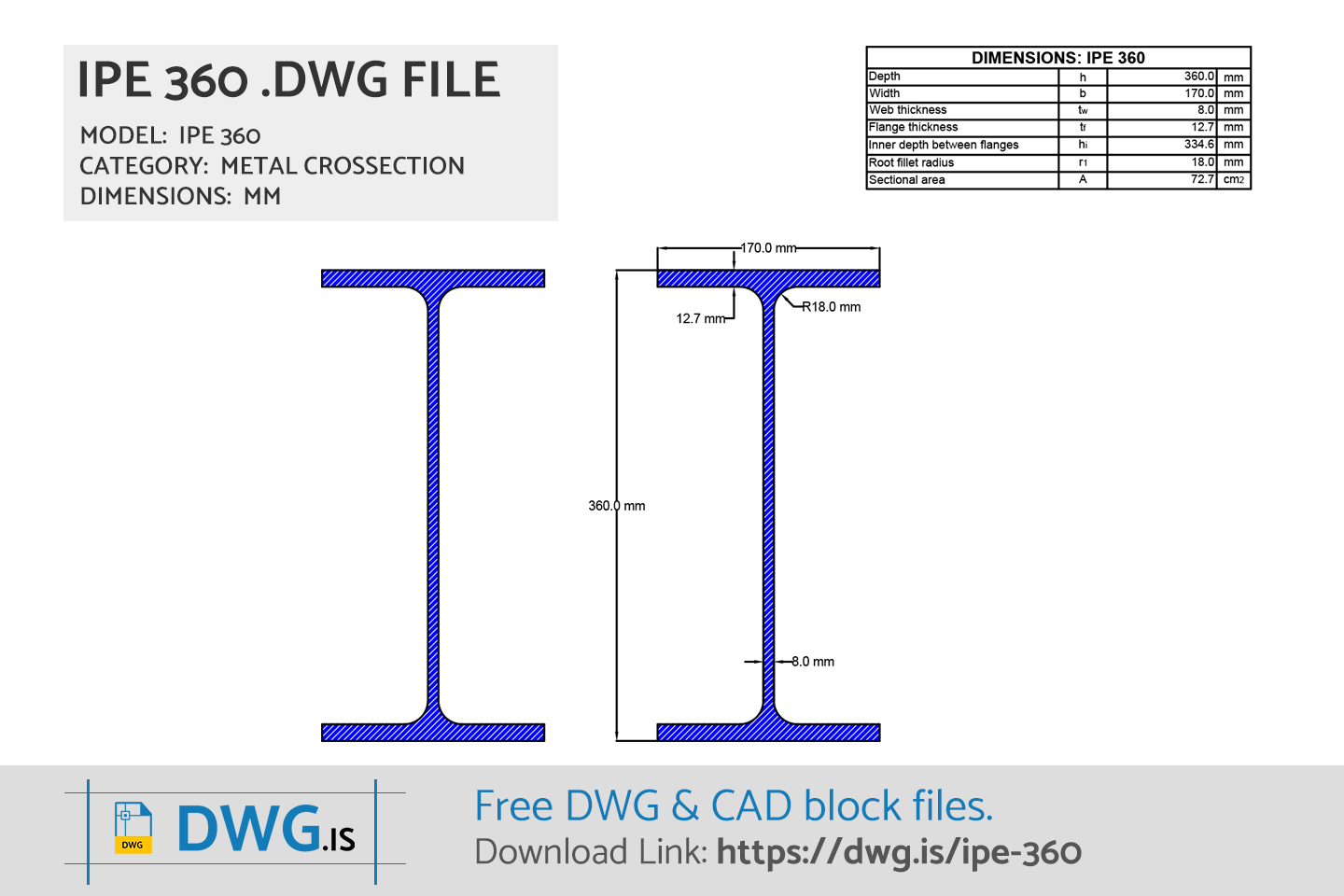

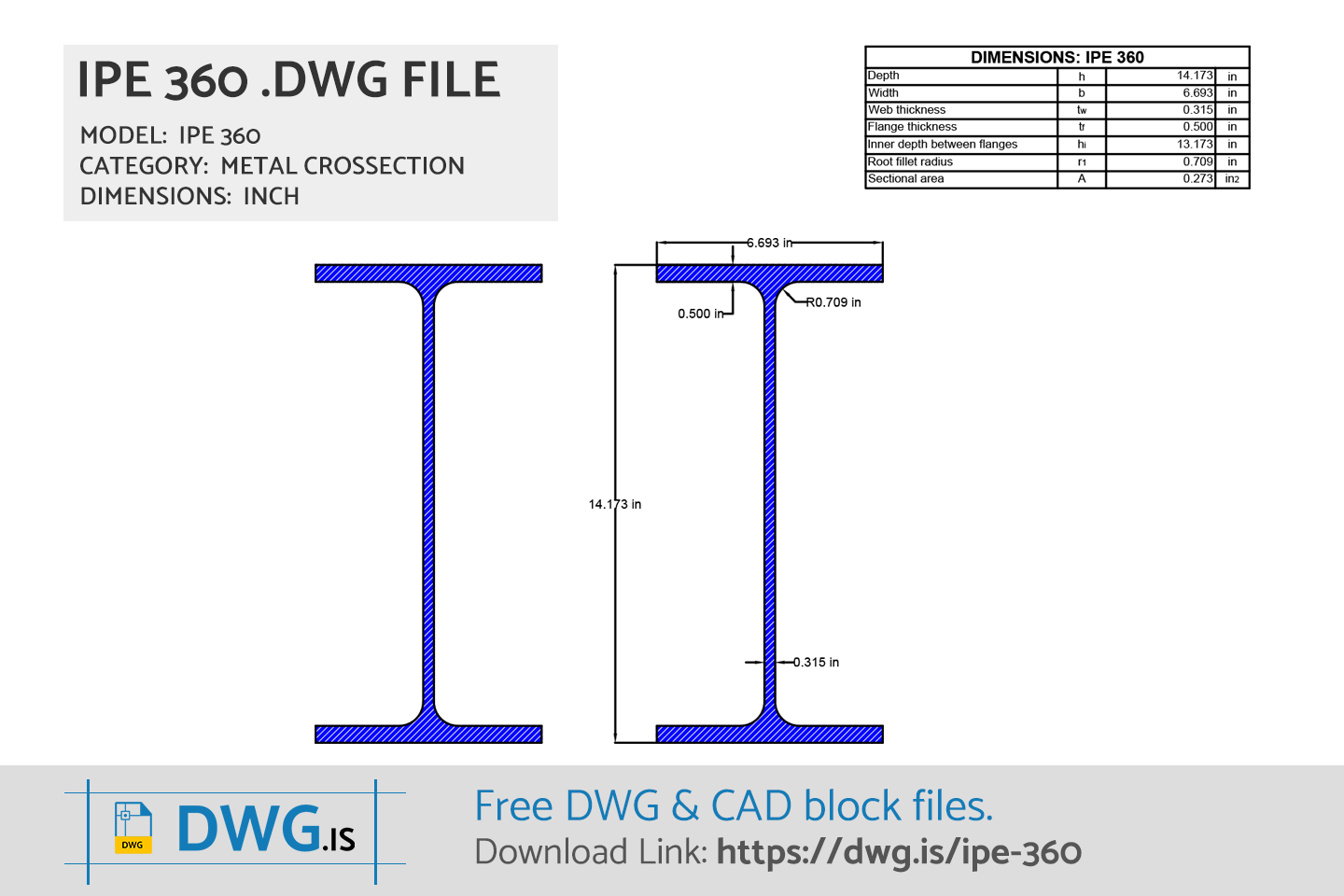

IPE 360 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 360 Dimensions
| IPE 360 Size | |
|---|---|
| Depth | 360.0 mm |
| Width | 170.0 mm |
| Web Thickness | 8.0 mm |
| Flange Thickness | 12.7 mm |
| Inner depth between flanges | 334.6 mm |
| Root Fillet Radius | 18.0 mm |
| Distance | 31.0 mm |
| Sectional Area | 72.73 cm2 |
IPE 360 FAQ
-
What are IPE 360 size?
IPE 360 has dimensions: Depth 360.0 mm, Width 170.0 mm, Web Thickness 8.0 mm, Flange Thickness 12.7 mm, Inner depth between flanges 334.6 mm, Root Fillet Radius 18.0 mm, Distance 31.0 mm, Sectional Area 72.73 cm2.
